1000W 12V ELECTRIC HEATER CONNECTION KIT

4-Relay Wiring Harness with 3-stage fan control and 3-stage heating control for T7Design 12V 1000W electric heater

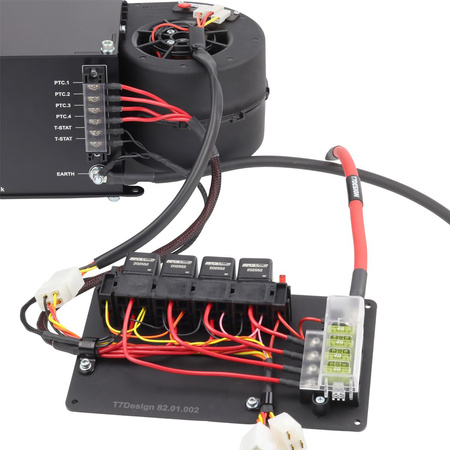

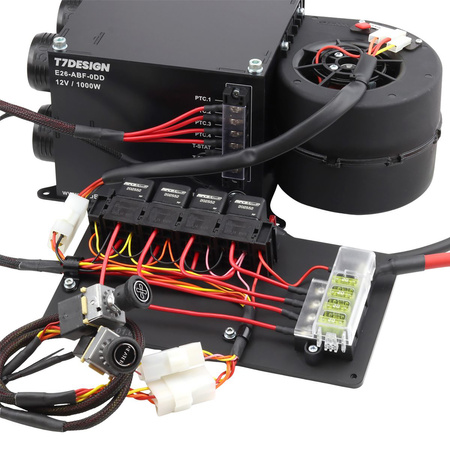

A complete 'Plug & Play' kit for the T7Design 1000W electric heater, including all necessary relays, fuses, switches, ground and power wires, mounted on a convenient mounting plate.

Product information:

• Compatible with T7Design 12V 1000W electric heater
• Allows control of fan and heating power with separate switches
• Automatic activation of the heater when the fan is turned on
• Made of high quality components, designed to handle high current values
• Factory assembled wiring harness on mounting plate
• Use of bonded heat shrink on all high-current connections for added protection

Specifications:

• Designed for 12V DC systems
• Maximum continuous current draw: 83A
• Ripca high quality relays and wiring
• Includes two separate 4-position switches for fan and heating power control
• Wire lengths from fuse to relay: 2m

Switch functions:

4-position fan switch:

• Position 1: OFF
• Position 2: Low speed
• Position 3: Medium speed
• Position 4: High speed

4-position heater switch:

• Position 1: OFF
• Position 2: 500W
• Position 3: 750W
• Position 4: 1000W

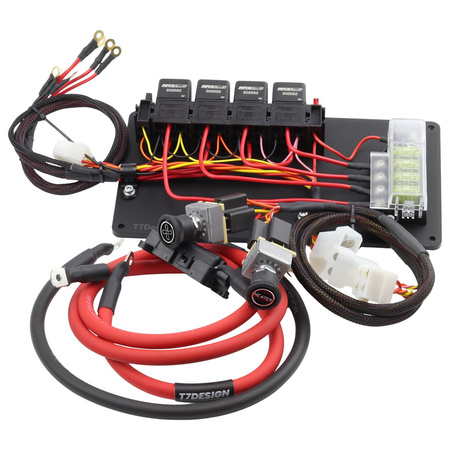

Kit contents:

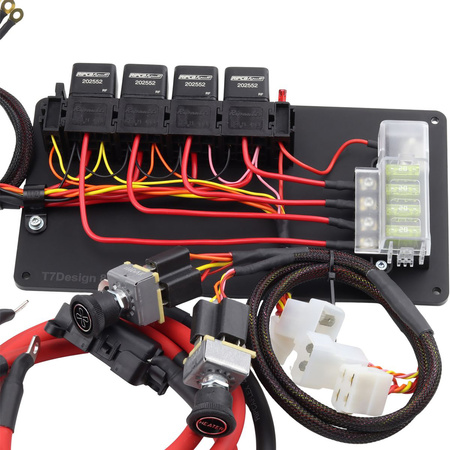

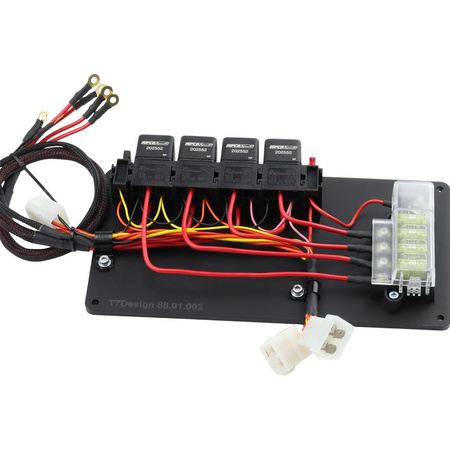

• Fully assembled relay and fuse board

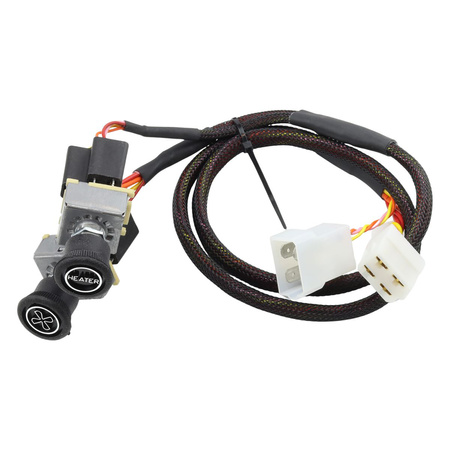

• 4-position fan switch (1 pc.)
• 4-position heating switch (1 pc.)
• Cables for the switches (2 x 1m)
• Ground wire 25mm² (0.5m)

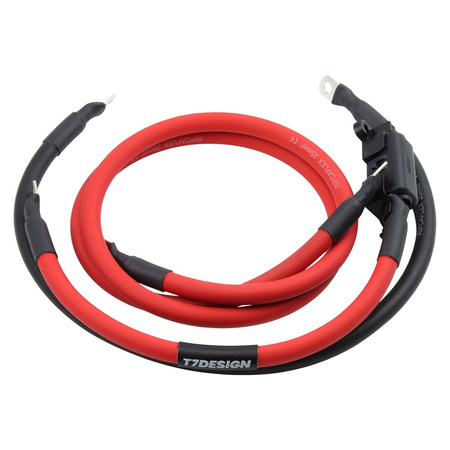

• Battery cable 25mm² with 100A fuse (0.3m)
• Battery cable 25mm² (1m, optional longer)

Note: This product is for the T7Design 12V 1000W heater only. Heater sold separately.
