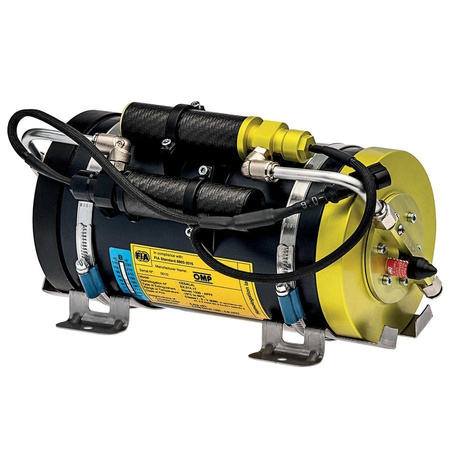

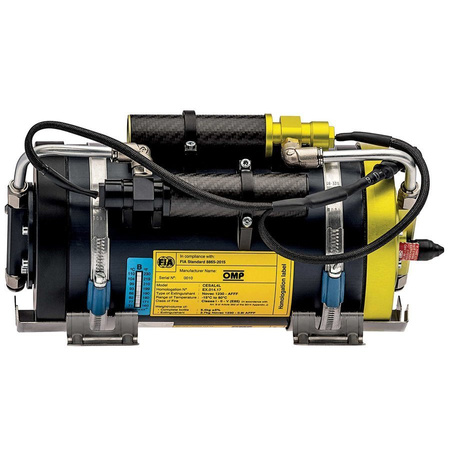

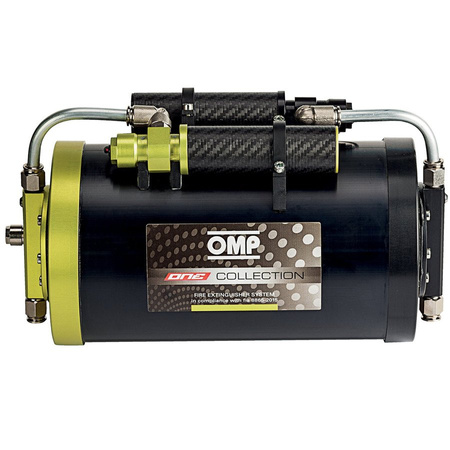

OMP One Collection S fire extinguishing system - electric
OMP One Collection S fire extinguishing system - electric
FIA 8865-2015 approved
Designed for use in smaller cockpits, with a capacity of 1.2m³ to 2.2m³
OMP's newest and most advanced fire extinguishing system. Made of ultralight alu alloyminium.
Weight: 5.4kg (bottle only)
Cylinder length: 275mm
Cylinder diameter: 134mm
Total cylinder height: 166mm
The set includes the following items:
- 1x Fire extinguisher
- 2x Fire extinguisher mount with Anti-Torpedo (CD/408)
- 2x 4 meters aluminiowy 8mm cable (CD/323/A)
- 2x Wire cover (CD/324/8/N)
- 2x Cockpit nozzle mount (CD/409)
- 2x Cockpit nozzle (CD/410)
- 3x Engine compartment nozzle (CD/393/N)
- 1x T-joint (CD/412)
- 2x Y-connector (CD/414)
- 3x 90° connector (CD/415)
- 2x Straight connector (CD/416)
- 1x Fire extinguishing systeMU control panel (CD/360)
- 1x Electrical wiring harness (X/CAB/CESAL4)
- 1x External switch (EA/467)
- 1x External switch cover (X/181493)
- 2x "E" safety stickers (X/855)
