Ecumaster EMU Black USB-C (revision P) 2024
Ecumaster EMU Black (revision P)
Due to Ecumaster's policy of continuous product improvement both in terms of hardware and software, we are pleased to announce that we are introducing a new revision of the EMU Black computer (Revision P) to the market. We would like to emphasize that it is 100% compatible with previous versions of the device. The changes introduced are intended to increase the reliability of the device, thus leading to your satisfaction!
Below is the list of changes:
1. Replacing the USB-C connector:
Transition from microUSB to USB-C for improved compatibility and durability.
2. Improved Voltage Regulators:
- Implementation of new voltage regulators aimed at increasing the precision and reliability of the 5V output.
3. Buffered switch inputs:
- Integration of buffered switching inputs to optimize performance and response speed, ensuring better performance.
HIGH TECHNOLOGY
EMU Black is assembled in accordance with IPC-S-815A standards to ensure high product reliability. The device is manufactured on an automated assembly line with optical control and tested automatically, including firing. The quality and design of the PCB, special surface coating and IP60 protection rating make the device operate in the most difficult conditions. The components used allow continuous operation in a very wide temperature range (AECQ-100 GRADE 2 (-40 to +105˚C).
WIDE FUNCTIONALITY
EMU Black has more built-in features than any other aftermarket ECU. Easily matches the functionality of other stand-alone management systems with multiple inputs and outputs. Unlike many other ECU systems, the EMU Black has a built-in wideband lambda input (Bosch LSU 4.2 and LSU 4.9 sensors connected directly), a MAP control connector (4 bar MAP sensor on board), 2 EGT probe inputs and an input for direct connection of a content sensor Flex Fuel ethanol. All this provides greater flexibility, reduces costs and eliminates the need for external or additional signal control systems and associated cabling that other management systems require.
SPECIFICATION:
GENERAL:
Operating temperature range: AECQ100 GRADE2 (-40 to +105˚C)
Protection against incorrect power connection: YES (built-in)
Operating voltage range: 6-22V (transient resistance, according to ISO 7637)
Housing: IP 65, made of aluminum using CNC technology according to Ecumaster design
Dimensions(mm), weight(g): 150x72x31, 390

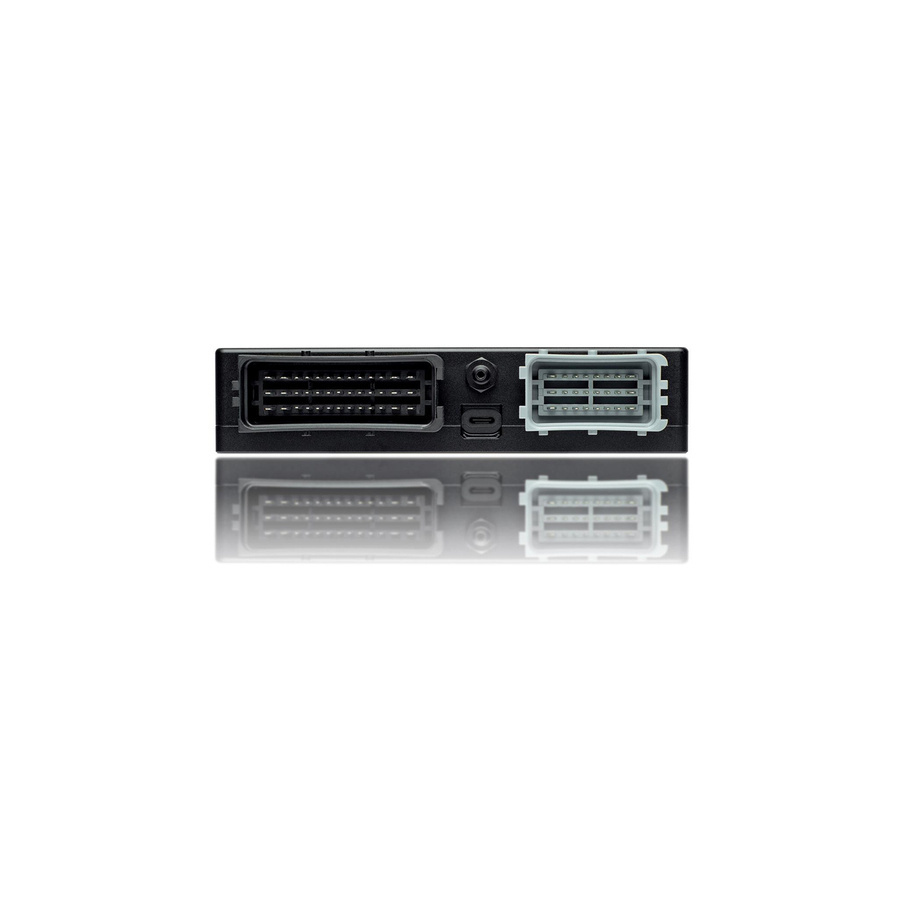

Connector types: 1x24, 1x39 FCI in Automotive specification
PC communication: USB (via Windows PC client), serial, Can-Bus
