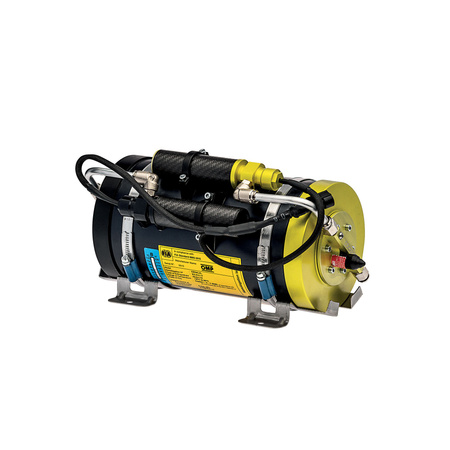

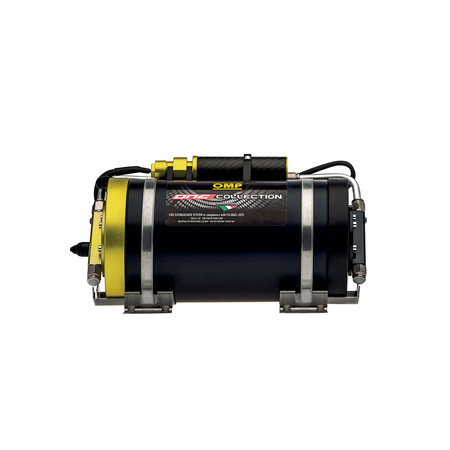

Extinguishing system OMP One Collection CESAL4 LE - aluminum, electric, mini

Extinguishing system OMP CESAL4 LE – electric

Approval: FIA 8865-2015

Electric extinguishing system for closed-cockpit race cars

OMP CESAL4 LE is an electrically activated extinguishing system designed for racing cars with a roof and closed cabin, such as touring cars, GT cars, and rally cars. The system is designed to simultaneously protect the engine compartment and the driver's cockpit, in accordance with the approval requirements of FIA 8865-2015.

Technical characteristics of the eMU system

• Activation type: Electric – the system is compressed when activated
• Extinguishing agent: FK-5-1-12
• Cylinder material: Aluminum mini um
• Total weight: 5.5 kg
• Cylinder diameter: 134 mm
• Cylinder length: 275 mm
• Version: L – for medium and larger cabins (from 1.99 m³ to 3.73 m³)

Fire protection configuration

• Total number of nozzles: 5
• Engine compartment: 3 nozzles to protect key areas exposed to fire
• Driver's cabin: 2 nozzles protecting the front and rear of the cockpit

Application and fuel compatibility

• Gasoline engines
• Gasoline with up to 30% ethanol or methanol additive
• E85 fuels (up to 85% ethanol or methanol)
• Hybrid cars
• Electric cars

Components included in the set

• Aluminumminie hoses 8 mm (4 m)
• 10 mm hose covers
• 3 nozzles for the engine compartment
• 2 nozzles for the cabin
• Straight, 90°, T- and Y-type connectors (8 mm)
• Mounting brackets with clamps
• Control unit with full wiring
• Activation buttons (0.5 m and 1.5 m) with safety features
