Aluminum distribution block for two Bosch 044 OBP fuel pumps

Aluminum distribution block for two Bosch 044 OBP Motorsport fuel pumps

Key features and benefits:

• Manufacturer: OBP Motorsport – British manufacturer of specialist components for fuel and hydraulic systems
• Model: Twin Bosch 044 Fuel Pump Billet Aluminum Outlet Manifold - Distribution block for configurations with two Bosch 044 fuel pumps or equivalent
• Material: Milled 6061 Billet Aluminum – lightweight, durable and corrosion-resistant, ensuring excellent sealing
• Design: Precision machined aluminum block allows two pumps to be combined into one common fuel outlet, minimizing the number of connectors and lines
• Outputs: Two pump ports with built-in check valves prevent fuel backflow and protect pumps from damage
• Outlet configuration: Choose between straight outlet (center port) or 90° outlet (side port); both threads are AN/JIC 8 standard
• Option to plug unused port - AN/JIC 8 plug included
• Mounting hole spacing: 76mm – compatible with standard Bosch 044 dual pump bracket (optional bracket available separately)
• Application: High-performance fuel systems in performance, racing, and custom vehicles

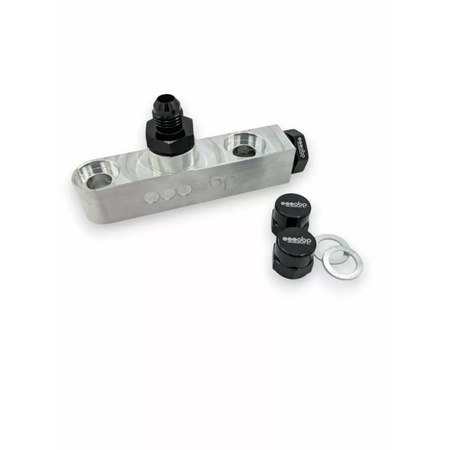

Set contents:

• 1 × CNC 6061 aluminum distribution block
• 2 × M12x1.5 plugs
• 2 × M12 sealing washers
• 1 × AN/JIC 8 plug
• 1 × AN/JIC 8 to AN/JIC 6 ORB adapter (other sizes available on request)

Why choose this distribution block:

The OBP Motorsport distribution block for dual Bosch 044 fuel pumps is a professional solution for high-performance systems where reliability and simple design are key. The use of milled 6061 aluminum ensures durability and resistance to extreme operating conditions. Built-in check valves eliminate the risk of fuel backflow, and the ability to select the outlet direction increases installation flexibility. Ideal for motorsport applications, tuning, and advanced custom projects.

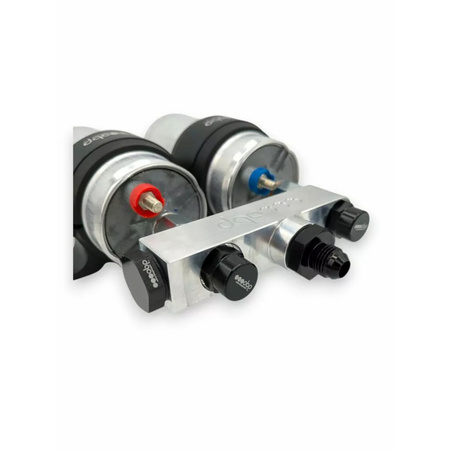

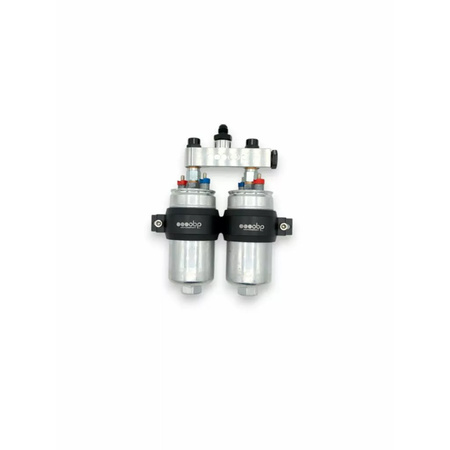

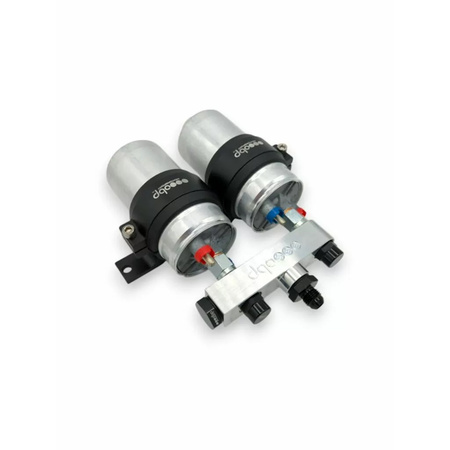

Please note: the photos show two Bosch 044 fuel pumps - these are not included in the kit and are shown for demonstration purposes only.
