Toyota Supra Mk5 (A90) & BMW Z4 (B58) Oil Catch Can
This oil catch tank kit is for the Toyota Supra A90 and BMW Z4 with the BMW B58 Engine, developed by our in-house development team. Not only is it beautifully designed, it has been created to capture the maximum amount of harmful contaminants, including oil deposits, unused fuel vapours and moisture, all of which would ordinarily make their way back through to the inlet of the engine.
When the B58 engine is tuned heavily blow by can occur resulting in poor breathing our specifically designed catch can system and extensive testing has proven our oil catch tank kit's ability to effectively reduce sludge and carbon build up, in turn allowing the engine to both breathe and perform more efficiently. It can therefore be viewed as a genuine performance enhancing product and one we recommend, particularly if you are planning more advanced power tuning at a later date.

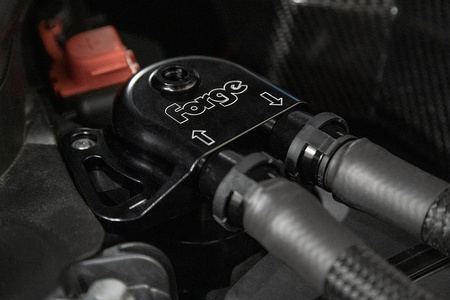

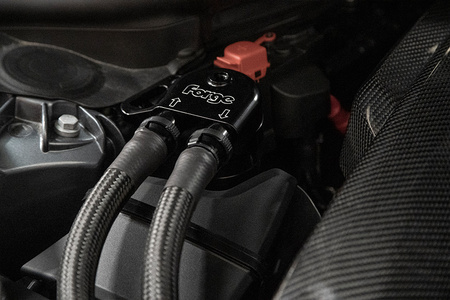

With aesthetics also in mind our catch can has the bracket incorporated into the catch can lid and is placed behind the factory airbox heat shield meaning this important component can still be kept in situ.

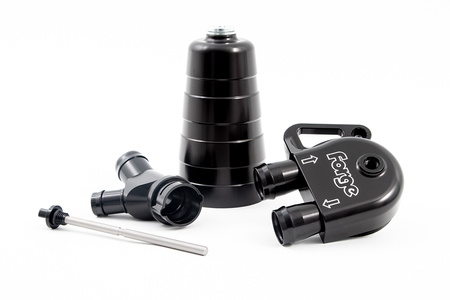

The 0.4l (400cc) catch tank boasts a slew of features intended to make it both easy to check and simple to drain, including a dipstick for level inspection.
The design of the breather adaptor and catch can was formed using the latest 3D solidworks software and engineered for a complete plug and play solution with no cutting or modifying of original components meaning the vehicle can return to stock in just under a hour.
The design of the kit has also been carefully considered, hence its inner tube which is constructed from anti-static smooth fuel resistant nitrile rubber. This is paired with an outer cover made from reinforced stainless steel wire braid (a Forge specialty), specifically a partial inner braid and a full cover outer braid. We developed this complex arrangement in order for the tank to be resistant to both pressure expansion and vacuum collapse, and also to enable the kit to function within a clearly defined temperature range – 54°C to +150°C (-65°F to 300°F)
Finally, this kit includes machined billet fittings that are anodised black to form an OEM-looking product when installed.
