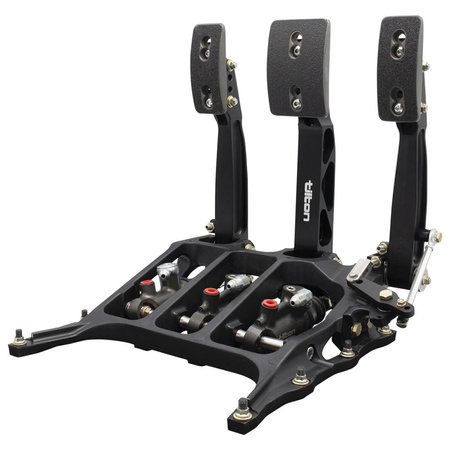

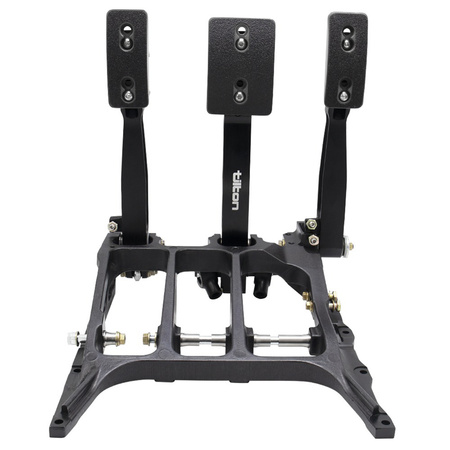

Tilton 850-Series 3-pedal floor pedal assembly

Tilton 850-Series 3-pedal floor pedal assembly

Advanced design for maximum control

The Tilton 850-Series pedal assembly is a professional solution for racing and sports vehicles, providing precise brake, clutch and gas control. With its adjustable geometry and lightweight design, the set allows for a perfect fit to the rider's driving style.

Key features and benefits:

• Ultra-efficient 7/16"-20 trunnion bar balance - almost completely eliminates brake migration in the braking zone
• Milled alu brake pedalminium on ball bearings in axle
• Forged aluminium accelerator and clutch pedals with oil-soaked bronze bushing at pivot point
• Durable and lightweight frame made of aluminium
• Adjustable brake pedal ratio (from 4.8:1 to 6.1:1) allows you to adjust the force without changing master cylinders
• Adjustable pedal platforms (vertically, horizontally and at an angle) - maximum fit for the rider
• Compatible with throttle linkage kits - both mechanical and drive-by-wire (sold separately)
• Low weight of the kit: only 3.45 kg (without master cylinders)

Compatible with brake master cylinders (sold separately):

• Brakes: 78 or 79 series Tilton master cylinders
• Clutch: Tilton 78 series master cylinders
