Haltech Nexus IO16 Input/Output Expander

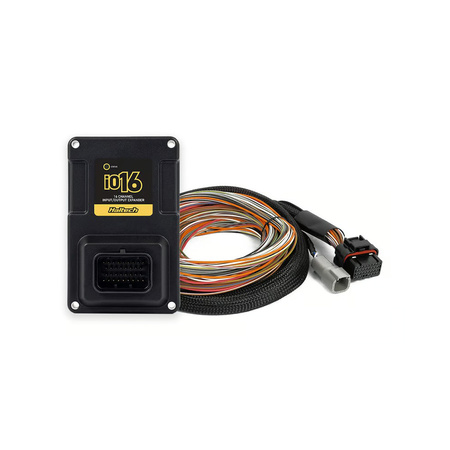

Haltech Nexus IO16 Input/Output Expander with 2.6 m (8.5') universal wiring harness

Expanded ECU functionality

Haltech Nexus IO16 is a CAN module that allows you to expand your Haltech Nexus or Elite ECUs with 16 fully configurable input and output channels. With the included 2.6-meter universal wiring harness, installation is quick and convenient.

Inputs

• 6 x analog inputs (AVI) - reading range 0-5 V
• Selectable pull-up resistor 1 kΩ to 5 V
• 4 x synchronized pulse inputs (SPI) - Reluctor/Digital, range 0-5 V
• Selectable pull-up resistor 1 kΩ to 5 V

Outputs

• 6 x Half Bridge Outputs (HBO) - 8 A current (sink/source)
• Operation in the range of 0-100% signal fill
• Switching frequency of 2.2 kHz
• Not suitable for use in DBW throttles
• Requires power supply using DC power pins and power ground pins

Additional connectors

• 3 x 5 V outputs (sensor power supply)
• 4 x sensor ground
• Any 5 V output and sensor ground can be paired during wiring
