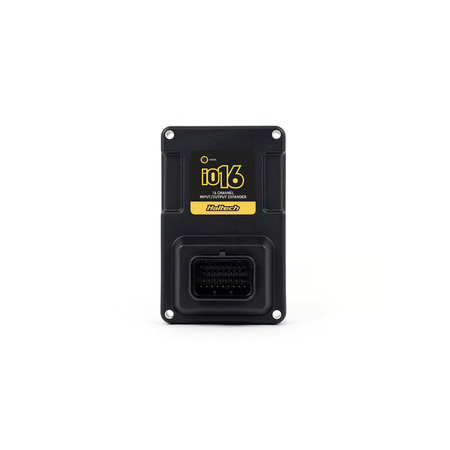

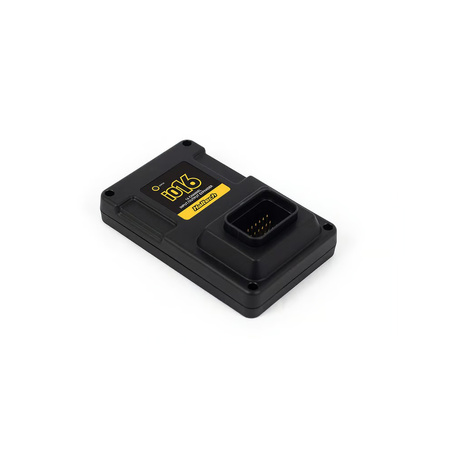

Haltech Nexus IO16 Input/Output Expander - 16 channels

Haltech Nexus IO16 Input/Output Expander - 16 channels

Compatibility

Designed to work with Nexus series ECU/VCU/Dash and Elite series ECUs. Does not work with Platinum series ECUs.

Kit contents

• IO16 Expander module
• Mounting components
• Quick start instructions

Expanded ECU functionality

The Haltech Nexus IO16 is a CAN device that allows Haltech Nexus or Elite ECUs to be expanded with 16 fully customizable input and output channels, accessible through the Haltech CAN system.

Inputs

• 6 x analog inputs (AVI) - reading range 0-5 V
• Selectable pull-up resistor 1 kΩ to 5 V
• 4 x synchronized pulse inputs (SPI) - Reluctor/Digital, range 0-5 V
• Selectable pull-up resistor 1 kΩ to 5 V

Outputs

• 6 x Half Bridge Outputs (HBO) - 8 A current (sink/source)
• Operation in the range of 0-100% signal fill
• Switching frequency of 2.2 kHz
• Not suitable for use in DBW throttles
• Requires power supply using DC power pins and power ground pins

Additional connectors

• 3 x 5 V outputs (sensor power supply)
• 4 x sensor ground
• Any 5 V output and sensor ground can be paired during wiring
