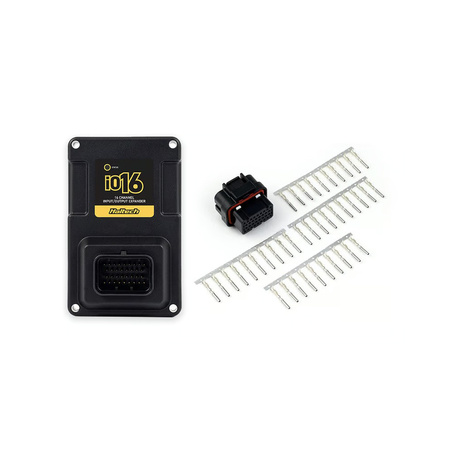

Haltech Nexus IO16 Input/Output Expander - expansion module with plug and pin set

Haltech Nexus IO16 Input/Output Expander - expansion module with plug and pin set

Kit contents

• IO16 module
• Plug and pin set compatible with Haltech Nexus products using Key 2 34-pin connector

Enhanced ECU functionality

The Haltech Nexus IO16 is a CAN module that allows Haltech Nexus or Elite ECUs to be expanded with 16 fully configurable input and output channels. All channels can be accessed via the Haltech CAN system.

Inputs

• 6 x analog inputs (AVI) - reading range 0-5 V
• Selectable pull-up resistor 1 kΩ to 5 V
• 4 x synchronized pulse inputs (SPI) - Reluctor/Digital, range 0-5 V
• Selectable pull-up resistor 1 kΩ to 5 V

Outputs

• 6 x Half Bridge Outputs (HBO) - 8 A current (sink/source)
• Operation in the range of 0-100% signal fill
• Switching frequency of 2.2 kHz
• Not suitable for use in DBW throttles
• Requires power supply using DC power pins and power ground pins

Additional connectors

• 3 x 5 V outputs (sensor power supply)
• 4 x sensor ground
• Any 5 V output and sensor ground can be paired during wiring
