Internal wastegate actuator GenV HyperGate45 35psi Black
Internal wastegate actuator GenV HyperGate45 35psi Black
Product Description

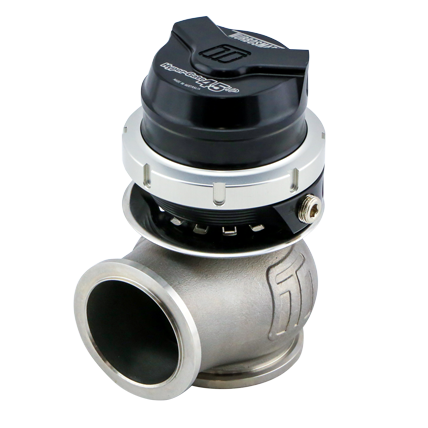

The GenV HyperGate45 HP external wastegate is a high performing 45mm external wastegate with base spring pressure options of up to 50psi! Add to that some reference signal manipulation and you have some serious boost!The Turbosmart GenV architecture provides class leading flow, thermal performance and fatigue resistance. A direct fit upgrade to all 4th-generation Turbosmart Wastegates & featuring our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling (optional), 1/8″ NPT ports, and are provided with up to 35psi worth of springs pre-loaded – Even more available separately.
Features:
Rotating HP Actuator Housing for more mounting options
Suits Turbosmart Gen 4 & ‘other’ 44/46mm V-Band’s
Suits Turbosmart Gen 4 & ‘other’ 44/46mm Flange Orientation
High temp spring combinations up to 50psi!
1/8 NPT Reference Ports
1/8 NPT Liquid Cooling (Optional) Ports
V-band clamp mounting system
Locking collar for compact size and easy spring changes
More info:

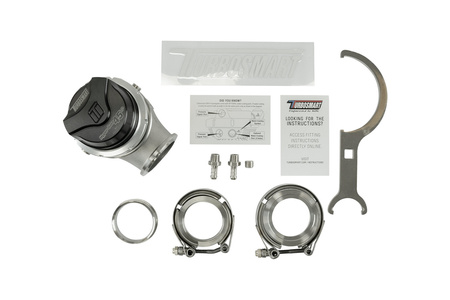

Foot Note 1: Includes Inlet and Outlet Weld-On Flanges & V-Bands
Foot Note 2: Fitment Requires Fabrication // Universal Product
Foot Note 3: Adjustable Product - Springs Options from 15psi to 40psi Available. Springs Pre-Fitted as per the description.
Fitting Position:
Brand
Entity responsible for this product in the EU
Ozparts B.V.More
Address:
Weena 690Postal code: 3012CNCity: RotterdamCountry: HolandiaE-mail: customerservice@ozparts.eu
Symbol
TS-0553-1312
Producer code
9329677022155
