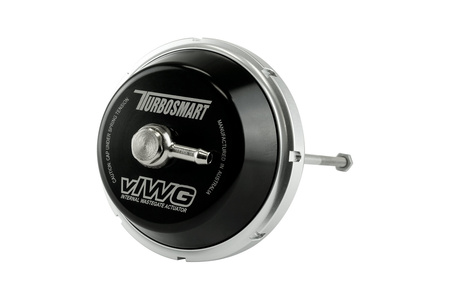

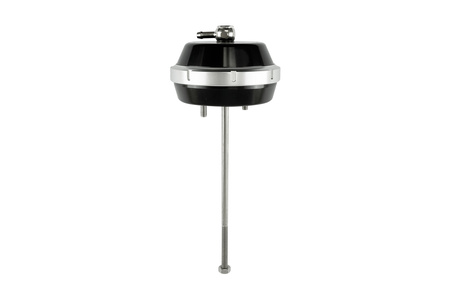

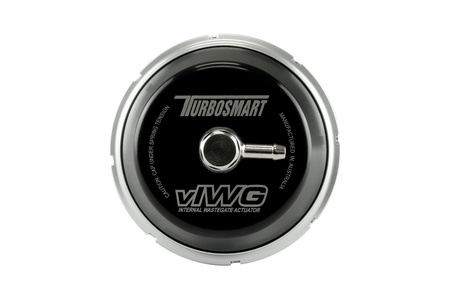

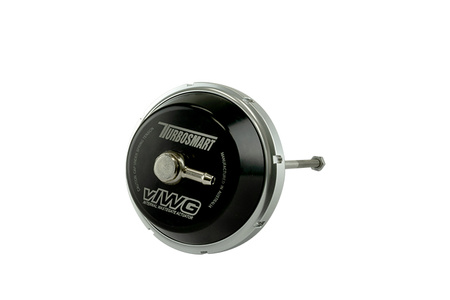

Internal wastegate actuator VIWG Wastegate Actuator Suit BMW N20 Engines – 6inHg
Internal wastegate actuator VIWG Wastegate Actuator Suit BMW N20 Engines – 6inHg
Product Description
Turbosmart Upgraded Vacuum-operated Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart vIWG Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response, throughout the RPM range.This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is recommended for optimal performance.
Features
Proprietary Silicon Nomex Diaphragm
High Grade Billet Aluminum Construction
Stainless Steel Rod
Turbosmart Unique Locking Collar System

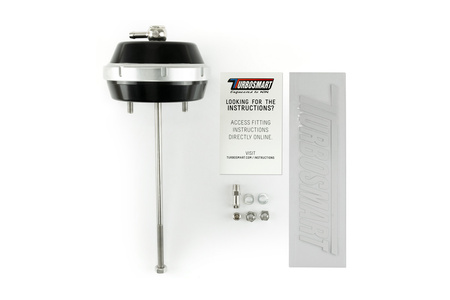

This is a Universal Vacuum operated vIWG Actuator with a 76mm diaphragm, supplied with a 150mm long 1/4 UNF thread for fitment on a wide variety of turbochargers. Some fabrication is likely required, including additional hardware such as clevis and brackets.
More info:
Foot Note 1: Complete Replacement Actuator
Foot Note 2: Bolt-On Product with Spectial Setup Insutrctions
Foot Note 3:
Fitting Position:
Brand
Entity responsible for this product in the EU
Ozparts B.V.More
Address:
Weena 690Postal code: 3012CNCity: RotterdamCountry: HolandiaE-mail: customerservice@ozparts.eu
Symbol
TS-0604-2067
Producer code
9329677025781
