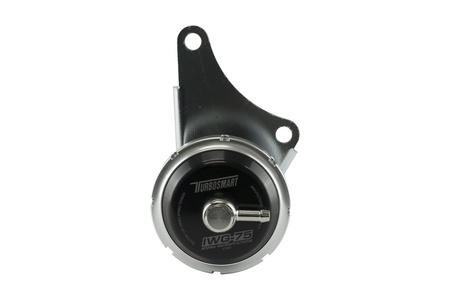

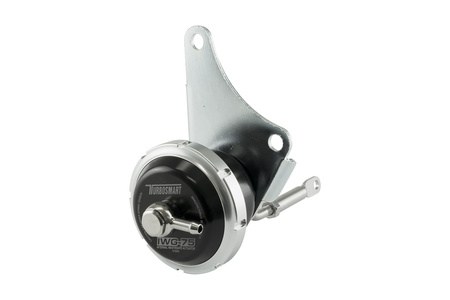

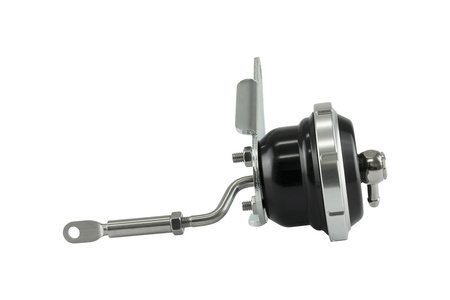

Internal wastegate actuator IWG75 Garrett GT2860RS (Disco Potato) Black 5 PSI
Internal wastegate actuator IWG75 Garrett GT2860RS (Disco Potato) Black 5 PSI
Product Description
Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response, throughout the RPM range.This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.
Available In
3psi / 0.2 BAR:
5psi / 0.3 BAR:
7psi / 0.5 BAR:
Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System
This is a bolt on fitment for the Garrett GT2860RS 'Disco Potato' Turbocharger
More info:
Foot Note 1: Complete Replacement Actuator
Foot Note 2: Bolt-On Product with Spectial Setup Insutrctions
Foot Note 3: Adjustable Product - Springs Options from 3psi to 26psi Available. Springs Pre-Fitted as per the description.
Fitting Position:
Brand
Entity responsible for this product in the EU
Ozparts B.V.More
Address:
Weena 690Postal code: 3012CNCity: RotterdamCountry: HolandiaE-mail: customerservice@ozparts.eu
Symbol
TS-0625-1052
Producer code
9329677023206
