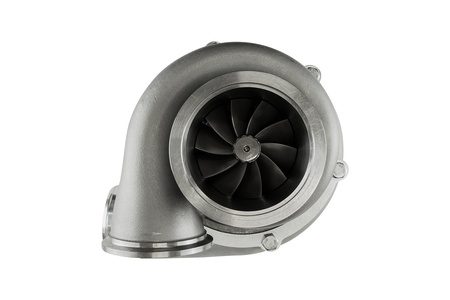

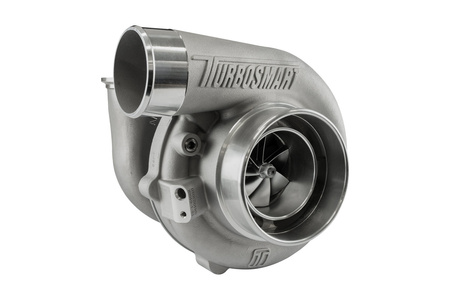

TS-1 Turbocharger 6466 V-Band 0.82AR Externally Wastegated (Reversed Rotation)
Turbosmart TS-1 6466 V-Band AR 0.82 turbocharger
Product Information:
The Turbosmart TS-1 turbocharger series is a state-of-the-art solution designed for motorsports and demanding tuning projects. It utilizes the latest material and design technologies, offering lighter weight, faster response and compact dimensions.

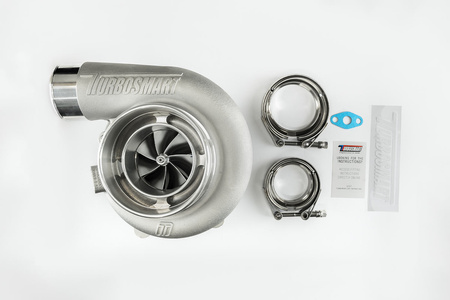

Each model in the series comes with a set of mounting accessories, such as weldable flanges, V-Band clamps, gaskets, and oil supply and drain fittings.
The TS-1 turbocharger is oil-cooled and features a lightweight, investment-cast turbine housing and a unique bearing and main shaft assembly. Thanks to the compressor's low rotational mass and advanced aerodynamics, the unit offers exceptional response and high efficiency even at low shaft speeds.
The design has been developed comprehensively - from inlet to outlet - to reduce backpressure and increase performance, while providing lower weight and faster response than competitive solutions.
Key features:
- Instant load response
- Type 7+7 forged alu compressor rotorminium 2618
- Lightweight 310s stainless steel turbine housing
- Aluminiowa compressor housing
- CFD design optimized for flow and A/R values
- Turbine rotor from Inconelu 713C - resistant to extreme exhaust gas temperatures
- VSR dynamic balancing
- Dual ceramic bearing system
- Integrated cast iron backplate in the center housing
Available series versions:
- TS-1 - oil-cooled
- TS-2 - oil and water cooled
- V-Band, T3, T4 flanges
- Versions with reverse rotation (reverse rotation)
- Various A/R variants
- Options with internal and external bleed valve
Technical specifications:
- Compressor inlet: 4″ / 101.6 mm
- Compressor inductor: 64 mm
- Turbine inlet: V-Band (2.25″)
- Turbine inductor: 66 mm
- Turbine A/R: 0.82
- Turbine outlet: V-Band (3.00″)
- Weight: 6.06 kg
- Power range: 825-955 HP
