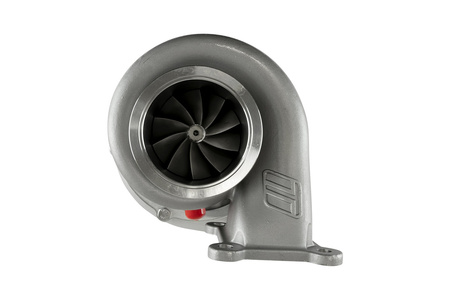

TS-1 Turbocharger 6870 T4 0.96AR Externally Wastegated
Turbocharger Turbosmart TS-1 6868 T4 AR 0.96
Product Information:
The TS-1 series turbochargers from Turbosmart are the result of modern design techniques and the use of advanced materials to meet the needs of racing drivers and tuning enthusiasts alike. Thanks to their light weight and high efficiency, the turbochargers in this series offer excellent flow response with minimal power losses.
Each turbocharger comes with a complete installation kit that includes weldable flanges, V-Band clamps, gaskets, and fittings for oil supply and drain.
The TS-1 is an oil-cooled unit with a lightweight investment-cast turbine housing and an innovative bearing and main shaft assembly. With its low rotating mass and optimized compressor aerodynamics, it provides maximum efficiency even at low speeds.
The design was developed comprehensively - from inlet to outlet - to achieve maximum power with the lowest possible backpressure and faster response than competing solutions.
Key features:
- Unmatched load response
- 7+7 forged alu compressor rotorminium 2618
- Cast stainless steel 310s turbine housing
- Lightweight alu compressor housingminium
- Housing design based on CFD analysis for optimal A/R and flow rates
- Turbine rotor from Inconelu 713C to withstand extreme exhaust gas temperatures
- VSR dynamic balancing
- Dual-ceramic patented bearing system
- Integrated cast iron back plate in the center housing
Available variants:
- TS-1 series - oil-cooling
- TS-2 series - oil-water cooling
- V-Band, T3, T4 flanges
- Versions with reverse rotation (reverse rotation)
- Various A/R variants
- Options with internal or external bleed valve
Technical specifications:
- Compressor inlet: 4″ / 101.6 mm
- Compressor inductor: 68 mm
- Turbine inlet: T4
- Turbine inductor: 70 mm
- Turbine A/R: 0.96
- Turbine outlet: V-Band (3.00″)
- Weight: 6.86 kg
- Power range: 850-990 HP
