TS-2 Turbocharger (Water Cooled) 6466 V-Band Reverse Rotation 0.82AR Externally Wastegated

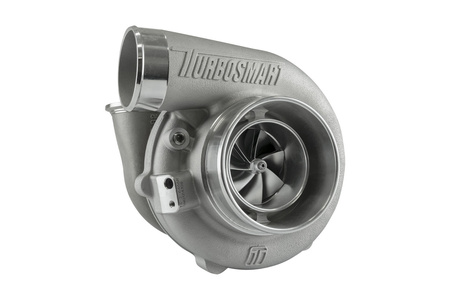

Turbosmart TS-2-6466B-VB100EW turbocharger

Product Information:

The TS-2 series from Turbosmart are advanced water- and oil-cooled turbochargers, developed with state-of-the-art materials and manufacturing technology to meet the demands of motorsports and tuning enthusiasts.
Each turbocharger is supplied as a complete installation kit - including welding flanges, V-Band clamps, gaskets, oil connections and water lines.

Thanks to the ultralight shaft and bearing design and aggressive compressor aerodynamics, the compressor achieves high performance even at low speeds. A state-of-the-art turbine housing reduces backpressure and increases flow, providing exceptional responsiveness and high power at high loads.

Key features:

• Exceptional flow response
• 7+7 aerodynamics with aluminium 2618
• Cast stainless steel 310s turbine housing
• Compressor housing made of lightweight aluminium
• Enclosures designed using CFD simulation
• Turbine rotor from Inconelu 713C, resistant to extreme temperatures
• VSR technology rotor balancing
• Double ceramic bearing
• Integrated cast iron back plate in the center housing

Available variants:

• TS-1 - oil-cooled turbochargers
• TS-2 - water- and oil-cooled turbochargers
• Options available with V-Band, T3 and T4 flanges
• Standard rotation and reverse rotation (reverse rotation)
• Versions with internal or external bleeder valve

Technical specifications:

• Compressor inlet: 4″ / 101.6 mm
• Compressor inductor: 64 mm
• Turbine inlet: V-Band (2.25″)
• Turbine inductor: 66 mm
• Turbine AR: 1.00
• Turbine outlet: V-Band (3.00″)
• Weight: 6.06 kg
• Power: 825-955 hp
