Kit for connecting a 1000W 12V electric heater

4-relay wiring harness with 3-stage fan control and 3-stage heating control for T7Design 12V 1000W electric heater

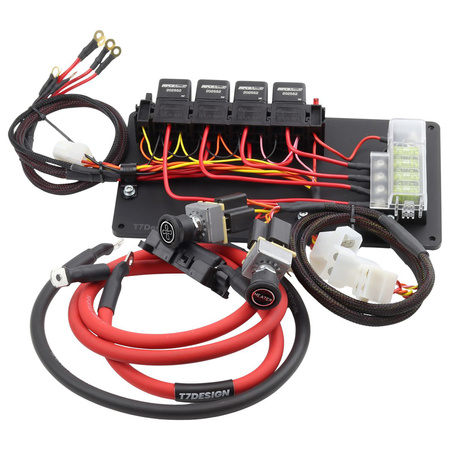

Complete 'Plug & Play' kit for connecting the T7Design 1000W electric heater, including all necessary relays, fuses, switches, ground and power wires, mounted on a convenient mounting plate.

Product information:

• Compatible with the T7Design 12V 1000W electric heater
• Allows you to control the fan and heating power using separate switches
• Automatic activation of the heater when the fan is turned on
• Made of high-quality components, designed to handle high current values
• Factory-assembled wiring harness on mounting plate
• Use of adhesive heat shrink on all high current connections for added protection

Specification:

• Designed for 12V DC systems
• Maximum continuous current consumption: 83A
• Ripca high quality relays and wiring
• Includes two separate 4-position switches to adjust the fan and heating power
• Cable lengths from fuse to relay: 2m

Switch functions:

4-position fan switch:

• Position 1: OFF
• Position 2: Low speed
• Position 3: Average speed
• Position 4: High Speed

4-position heater switch:

• Position 1: OFF
• Position 2: 500W
• Position 3: 750W
• Position 4: 1000W

Set contents:

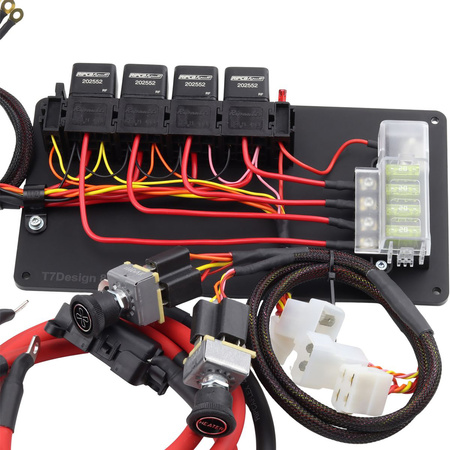

• Fully assembled relay and fuse board
• 4-position fan switch (1 pc.)
• 4-position heating switch (1 pc.)
• Switch cables (2 x 1m)
• Grounding wire 25mm² (0.5m)

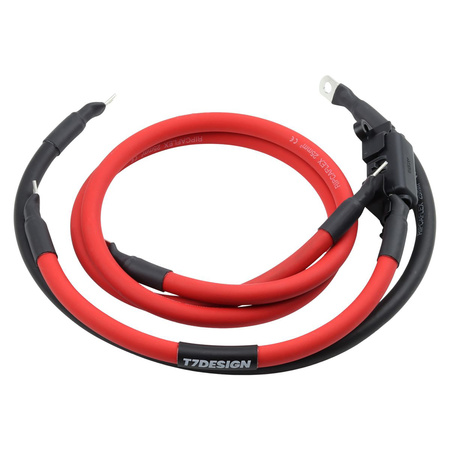

• Battery cable 25mm² with 100A fuse (0.3m)
• Battery cable 25mm² (1m, optionally longer)

Note: This product is intended for use with the T7Design 12V 1000W heater only. Heater sold separately.
