Kit for connecting a 600W 12V electric heater

Wiring harness with relays for a 12V 600W electric heater

Note: The harness is not compatible with the 12V 1000W Ducted electric heater.

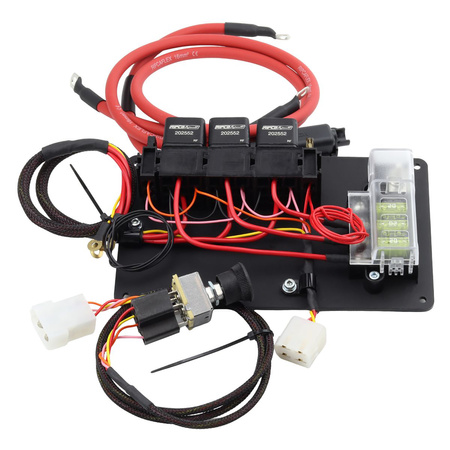

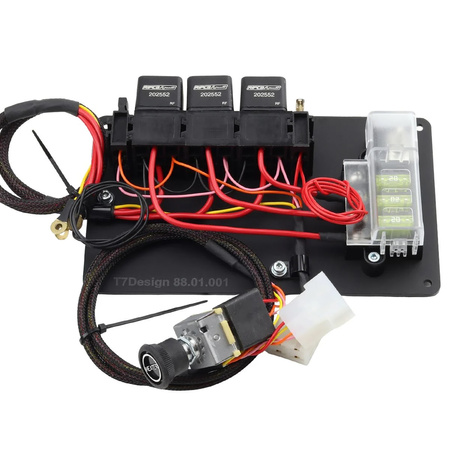

A complete wiring harness equipped with three relays, designed specifically for use with a 12V 600W electric heater. The kit is mounted on a practical mounting base and includes all necessary components, such as relays, fuses, and wiring, for quick and hassle-free installation.

Product information:

• Nominal voltage: 12 V DC
• Maximum continuous current: 60 A
• High-quality components: Ripca relays, cables and connectors
• Simple assembly: all components mounted on the mounting plate
• Durable construction: The kit is designed to operate at a maximum load of 60A
• Protected Wires: Thermal protection for all current connections
• Nominal voltage: 12V DC, maximum continuous load: 60A
• Cable diameter: appropriately selected for safe use with the heater

4-position switch: allows easy control of the fan and heater operation:

• OFF – Disabled
• LOW – Fan only (low power)
• MED – Medium heating power (fan + half power: 300W)
• HIGH – Full heating power (fan + 600W)

Cable lengths included in the set:

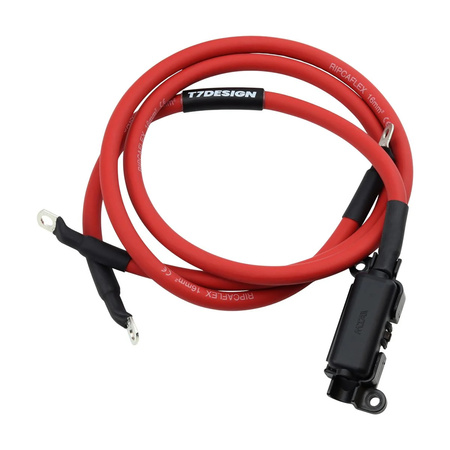

• Main power supply (battery – fuse): cable length 30 cm, terminated with eyelets
• Power supply from relay to heater: 1m
• Control cables from switch to relays: 1m

Note: The product is not compatible with a 12V 1000W electric heater.
