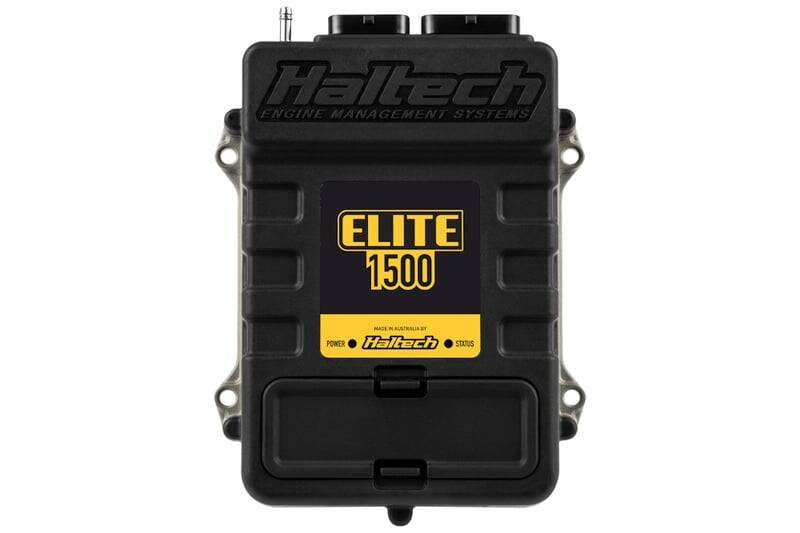

Haltech Elite 1500 ECU

Haltech Elite 1500 Universal ECU

The Haltech Elite 1500 is an advanced engine control unit designed for racing applications
and modern performance-tuned vehicles. With an IP67-rated waterproof housing, support for Drive-By-Wire (DBW),
variable valve timing, and knock control, it provides complete engine management.
It works seamlessly with the Nexus Software Programmer (NSP), offering an intuitive and powerful configuration platform.

Key Features:

• Engine Compatibility: 1-12 cylinders and 2-rotor engines.
• Supports Naturally Aspirated and Forced Induction Engines: Configurable for various intake systems.
• Advanced Fuel Injection Systems: Supports sequential, semi-sequential, multipoint, and other injection modes.
• Ignition System Support: Distributor-based, multi-coil, and Haltech CDI Multiplex systems.
• Electronic Throttle Control (DBW): Full Drive-By-Wire throttle control.
• Dual Knock Sensors: High-precision knock detection for engine protection.
• Dual CAN Bus: Enables connection to displays and expansion devices.
• Variable Valve Timing (VVT) Support: Independent control for up to 4 camshafts.
• Flex Fuel Support: Adjusts ignition and boost based on ethanol content.
• Built-in Data Logging: Logs up to 40 channels with a 5ms sampling rate.

Advanced Tuning Features:

• Auto-Tuning: Intelligent long-term learning for fuel maps, ignition, and idle control.
• Nitrous Control: Supports up to 6 stages with bank-specific management.
• Precision Boost Control: 4D intelligent boost control with multiple correction options.
• Wideband O2 Support: Connects up to 9 channels via CAN.
• EGT Monitoring: Supports up to 12 exhaust gas temperature channels.
• Advanced Engine Protection: Multi-level safety limit settings.

Racing Features:

• Launch Control – optimized start performance.
• Traction Control – dynamic traction regulation.
• Rolling Anti-Lag – maintains optimal RPM while in motion.
• Sequential Turbo Control – precise boost management.
• Flat Shift – optimized gear shifting.
• Advanced Torque Management – ideal for drag racing.

Kit Contents:

• Elite 1500 ECU
• USB Programming Cable

Applications:

• 4-cylinder, Drive-By-Wire, or 2-rotor engines.
• EFI conversions.
• Racing and performance-tuned vehicles.

The Haltech Elite 1500 is a high-performance ECU offering extensive tuning capabilities,
precise engine control, and advanced safety features.
It is the ideal choice for professional tuners and motorsport enthusiasts.
