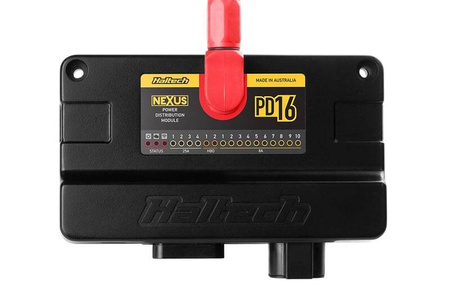

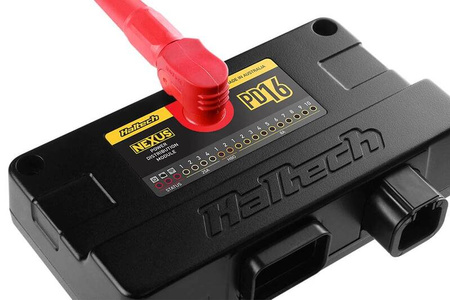

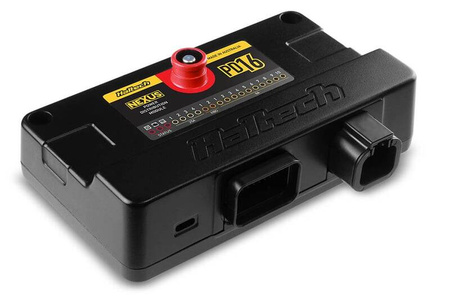

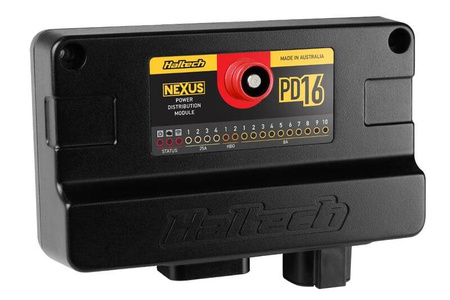

Haltech PD16 Power Distribution Module (PDM)
The Haltech NEXUS PD16 is an advanced power distribution module that sets a new standard
in vehicle energy management systems. Designed for seamless integration with Haltech Elite
and Nexus ECUs, it ensures safe and reliable power delivery to critical vehicle components.
The PD16 combines innovative technology with ease of use, enabling precise power management
while simplifying electrical installation by eliminating the need for conventional fuses and relays.
Key Features:
- Advanced Power Management System: Eliminates the need for traditional relays and fuses.
- Seamless Integration: Compatible exclusively with Haltech Elite and Nexus ECUs.
- High Current Handling: 4 high-power outputs rated at 25A each.
- Secure Connection: SurLok 120A connector ensures stable power supply.
- Built-in Inputs: 8 inputs plus a dedicated ignition switch input.
- Ignition Switch Power Supply: Facilitates easy ignition system wiring.
- CAN Bus Communication: Full integration with Haltech systems.
Technical Specifications:
- 10 High-Side Outputs
- 2 Half-Bridge Outputs
- 4 High-Current Outputs (25A)
- 8 Inputs + Dedicated Ignition Input
- Dedicated 5V Sensor Power Supply
- CAN Communication
- SurLok 120A Connector
Kit Contents:
- Haltech PD16 Module
- SurLok 120A Connector (Red)
- USB-C Cable
- USB-C Dust Cover
- Haltech Fabric Keychain
- Quick Start Guide
- Mounting Hardware (2x M5 Screws and Nuts)
Compatibility:
- Works exclusively with Haltech Elite and Nexus ECUs.
- Does not function as a standalone PDM module.
The Haltech NEXUS PD16 is the perfect solution for tuners and professional racing teams
seeking maximum control and reliability in vehicle power management.
With full integration into Haltech systems, this module simplifies installation and ensures stable operation in all conditions.
