Haltech TMS-4 - With internal sensors

Haltech TMS-4 Tire Monitoring System – Internal Sensors

The Haltech TMS-4 is an advanced tire pressure and temperature monitoring system
designed to provide precise control over tire conditions in racing and performance vehicles.
Fully integrated with Haltech Nexus and Elite ECUs, the system allows real-time tracking of key parameters,
helping detect potential issues before they become critical.

Key Features:

• Plug & Play: Seamless installation and configuration through Haltech ECU.
• Regular Data Updates: Values refresh every 60 seconds while driving.
• Advanced Diagnostic Alerts: System generates warning codes for various conditions.

Monitored Parameters and Error Codes:

• Tire pressure (high / low)
• Tire temperature (exceeding safe limits)
• Leak detection (air loss)
• Low sensor battery level

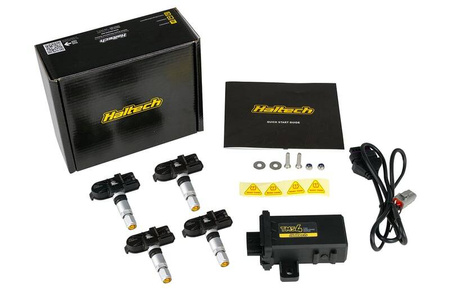

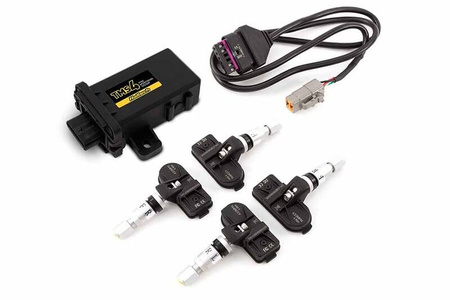

Kit Contents:

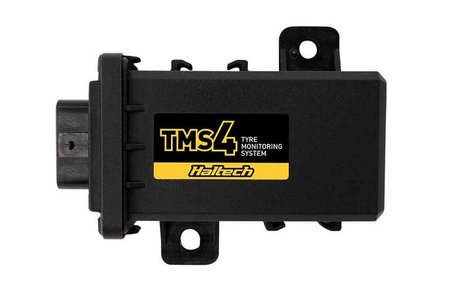

• Haltech TMS-4 Receiver
• TE Mcon to DTM-4 CAN Cable

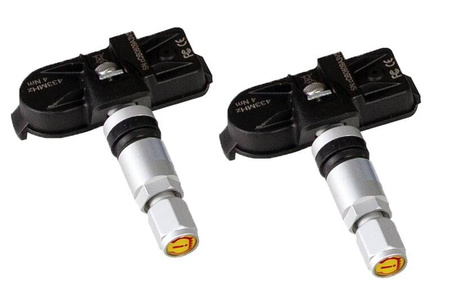

• 4 x Internal Pressure Sensors
• Warning Sticker Set
• Mounting Components
• Quick Start Guide

Compatibility:

• Supported ECUs: Haltech Nexus and Elite
• Required Software: NSP and ESP Software

Notes:

• Internal sensors include built-in, non-replaceable batteries.
• Average battery lifespan is approximately 3 years.

The Haltech TMS-4 is the perfect solution for racers and tuners looking to maintain optimal tire performance,
enhance safety, and improve vehicle handling. With intuitive configuration and full compatibility with Haltech ECUs,
this system ensures seamless integration and real-time monitoring of tire pressure and temperature.
