Set of front brake discs DBA 4000 series - T3 - DBA42314S + Front brake pads DBA Brake Pads Xtreme Performance ECE R90 certified Hawk HB601x.626 - DB2400XP + HEL braided brake lines INFINITI Nissan
- Diameter: 354.6 mm
Set:
Front brake discs DBA 4000 series - T3 - DBA42314S
DBA Brake Pads Xtreme Performance ECE R90 certified Hawk HB601x.626 front brake pads - DB2400XP
HEL braided brake lines for 1 axle - FREE!
Specification:
Suitable for street riding and occasional track riding
A perfectly matched and comprehensively tested disc and pad combination
DBA discs: Kangaroo Paw - 144 diamond and teardrop-shaped post ventilation system
DBA discs: T3 slots - additional number of degassing outlets allows friction gases to escape freely and improve pad grip
DBA discs: Thermal Stability Profiling (TSP) and increased disc durability under severe braking conditions
DBA brake pads: Semi-metallic carbon fiber friction material
DBA pads: GG friction class (0.45 medium mu from low to high temperatures)
DBA pads: Excellent performance at high temperatures
DBA pads: Optimum braking consistency up to 550℃ (1022℉)
Direct fit, requires no changes to the standard configuration

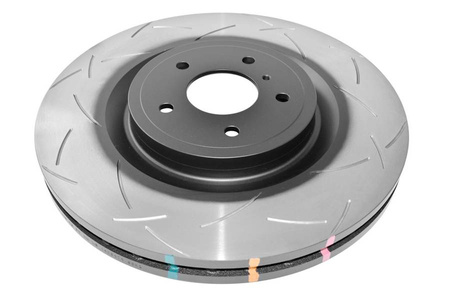

DBA 4000 series brake disc - T3
Catalog number: DBA42314S
Front axis
Diameter [mm]: 354.6
Shield type: Kangaroo Paw
Number of holes: 5
Inner diameter [mm]: 68
Minimum thickness [mm]: 30
Thickness [mm]: 32
Height [mm]: 49.5
Pitch Circle [mm]: 114.3
Stage: Stage 4
Weight of 1 piece (kg): 13.24

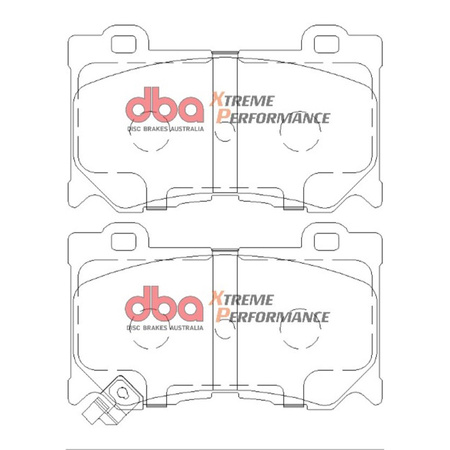

DBA Brake Pads Xtreme Performance ECE R90 certified (Hawk HB601x.626)
Catalog number: DB2400XP
Axle: front
Width [mm]: 127.1
Height [mm]: 75.7
Pad thickness [mm]: 15.9
FMSI: 8457-D1346
OEM: D1060JL00A
ECE R90 Number: E11 R90-02A01584/53185
Weight of 1 piece (kg): 2.17
Over forty years of manufacturing experience and unrivaled expertise through research and development, the DBA brand has established itself as Australia's most successful manufacturer and world leader in brake disc manufacturing.
Thanks to continuous improvement of technology and a desire for innovation, DBA has managed to redefine and provide brake discs for a wide variety of vehicle applications and in a wide range of conditions. When it comes to brake discs, as with all safety components, there can be no shortcuts. Drivers around the world value DBA products for consistency, reliability and excellent performance. DBA guarantees this by engineering disc brakes that are significantly superior to standard and equivalent disc brakes. How? DBA aims to provide high quality, accuracy, the best metals and production equipment that enable the production of the highest quality brake discs.
Brake lines include:
- Teflon cable with steel braid
- Stainless steel tips
- Stainless steel screws (depending on model)
- Copper washers
- Instructions
- Lifetime warranty
HEL Performance cables are available in 13 different colors:
| Wire core: | PTFE |
| Outer cable sheathing: | Stainless steel 303/304 and plastic cover embedded in the braid |
| Tip material: | Stainless steel 303/304 |
| Working Temperature: | from -70°C to 260°C |
| Inner Diameter: | 3.5mm |
| Outer Diameter: | 7.5mm |
| Maximum working pressure: | 290 Bar (4206 PSI) |
| Bursting pressure: | 870 Bar (12618 PSI |
| Minimum bending radius: | 38mm |

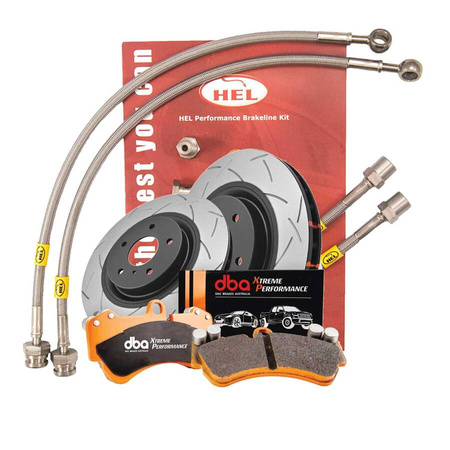

The set includes: 2x discs + pads + HEL cables
The set fits:
- INFINITI\Q60 Coupe\2.0 Turbo 211BHP (2016-2020) Brake Pads: DB2400
- INFINITI\Q70\2.2 TD 170BHP (2014-2020) Brake Pads: DB2400
- INFINITI\FX30D\3.0 TD (2010-2013) Brake Pads: DB2400
- INFINITI\M30D\3.0 TD (2010-2014) Brake Pads: DB2400
- INFINITI\QX70\3.0 TD 238BHP (2013-2017) Brake Pads: DB2400
- INFINITI\Q70\3.0 TD 238BHP (2014-2020) Brake Pads: DB2400
- INFINITI\Q50\3.0 Twin Turbo 304BHP (2016-2020) Brake Pads: DB2400
- INFINITI\Q50\3.0 Twin Turbo 405BHP (2016-2020) Brake Pads: DB2400
- INFINITI\Q60 Coupe\3.0 Twin Turbo 405BHP (2016-2020) Brake Pads: DB2400
- INFINITI\M35h\3.5 Hybrid (2011-2014) Brake Pads: DB2400
- INFINITI\Q50 Hybrid\3.5 Hybrid 360BHP (2013-2020) Brake Pads: DB2400
- INFINITI\Q50 Hybrid\3.5 Hybrid 360BHP AWD (2013-2020) Brake Pads: DB2400
- INFINITI\FX37\3.7 (2008-2013) Brake Pads: DB2400
- INFINITI\G37\3.7 (2008-2014) Brake Pads: DB2400
- INFINITI\M37\3.7 (2010-2014) Brake Pads: DB2400
- INFINITI\Q70\3.7 320BHP (2014-2020) Brake Pads: DB2400
- Nissan\370Z\3.7 330BHP (2009-2012) Brake Pads: DB2400
- Nissan\370Z\3.7 330BHP (2012-) Brake Pads: DB2400
- Nissan\370Z Nismo\3.7 355BHP (2009-) Brake Pads: DB2400
- INFINITI\Q60\3.7 S 320BHP (2013-2020) Brake Pads: DB2400
- Nissan\ Skyline Coupe (V36) V36\3.7 Type-S (2007-2014) Brake Pads: DB2400
- INFINITI\FX50\5.0 (2008-2013) Brake Pads: DB2400
- INFINITI\QX70\5.0 390BHP (2013-2017) Brake Pads: DB2400
