Set of rear brake discs DBA 4000 series - T3 - DBA42165S + DBA Brake Pads Street Performance (Hawk HB774x.650) - DB9022SP + HEL braided brake lines Ford Mustang 6th Generation
- Diameter: 330 mm
Set:
Rear brake discs DBA 4000 series - T3 - DBA42165S
DBA Brake Pads Street Performance (Hawk HB774x.650) - DB9022SP
HEL braided brake lines - FREE!
Specification:
Suitable for street riding and occasional track riding
A perfectly matched and comprehensively tested disc and pad combination
DBA discs: Kangaroo Paw - 144 diamond and teardrop-shaped post ventilation system
DBA discs: T3 slots - additional number of degassing outlets allows friction gases to escape freely and improve pad grip
DBA discs: Thermal Stability Profiling (TSP) and increased disc durability under severe braking conditions
DBA brake pads: Semi-metallic carbon fiber friction material
DBA pads: GG friction class (0.45 medium mu from low to high temperatures)
DBA pads: Excellent performance at high temperatures
DBA pads: Optimum braking consistency up to 550℃ (1022℉)
Direct fit, requires no changes to the standard configuration

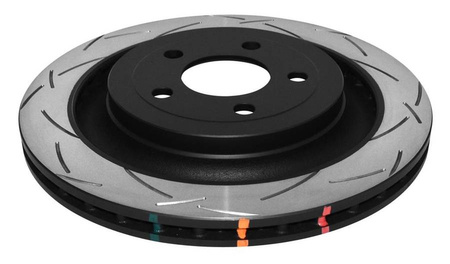

DBA 4000 series brake disc - T3
Catalog number: DBA42165S
Axle: rear
Diameter [mm]: 330
Shield type: Kangaroo Paw
Number of holes: 5
Inner diameter [mm]: 71
Minimum thickness [mm]: 23
Thickness [mm]: 25
Height [mm]: 43.7
Pitch Circle [mm]: 114.3
Stage: Stage 4
Weight of 1 piece (kg): 8.6

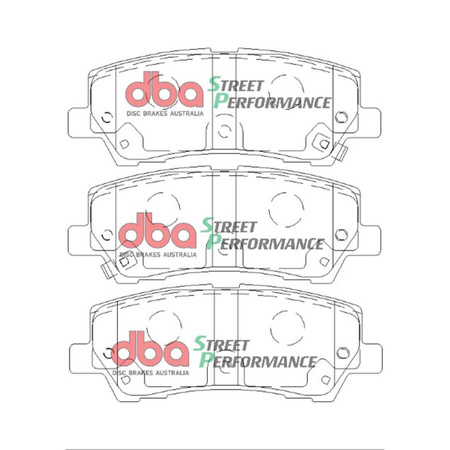

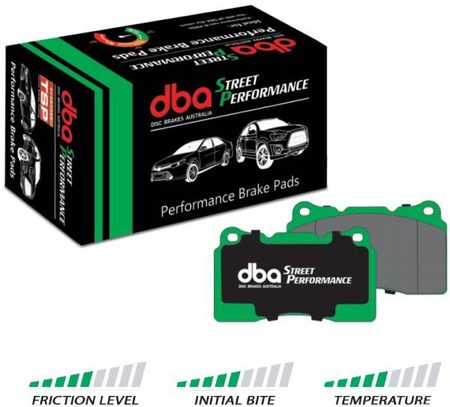

DBA Brake Pads Street Performance (Hawk HB774x.650)
Catalog number: DB9022SP
Axle: rear
Width [mm]: 126.8
Height [mm]: 47.9
Pad thickness [mm]: 16.6
FMSI: 9022-D1793
OEM: FR3Z2200A, FR3Z2200C, FR3Z2200D
Weight of 1 piece (kg): 1.36
Over forty years of manufacturing experience and unrivaled expertise through research and development, the DBA brand has established itself as Australia's most successful manufacturer and world leader in brake disc manufacturing.
Thanks to continuous improvement of technology and a desire for innovation, DBA has managed to redefine and provide brake discs for a wide variety of vehicle applications and in a wide range of conditions. When it comes to brake discs, as with all safety components, there can be no shortcuts. Drivers around the world value DBA products for consistency, reliability and excellent performance. DBA guarantees this by engineering disc brakes that are significantly superior to standard and equivalent disc brakes. How? DBA aims to provide high quality, accuracy, the best metals and production equipment that enable the production of the highest quality brake discs.
Brake lines include:
- Teflon cable with steel braid
- Stainless steel tips
- Stainless steel screws (depending on model)
- Copper washers
- Instructions
- Lifetime warranty
HEL Performance cables are available in 13 different colors:
| Wire core: | PTFE |
| Outer cable sheathing: | Stainless steel 303/304 and plastic cover embedded in the braid |
| Tip material: | Stainless steel 303/304 |
| Working Temperature: | from -70°C to 260°C |
| Inner Diameter: | 3.5mm |
| Outer Diameter: | 7.5mm |
| Maximum working pressure: | 290 Bar (4206 PSI) |
| Bursting pressure: | 870 Bar (12618 PSI |
| Minimum bending radius: | 38mm |

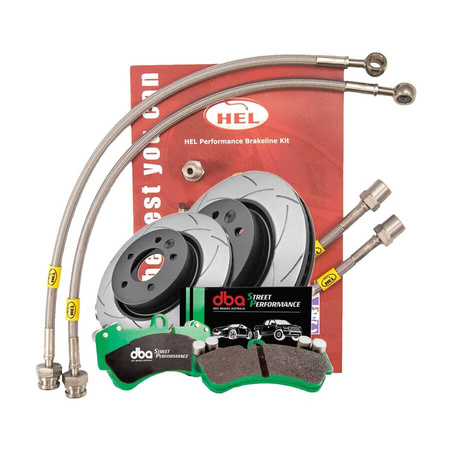

The set includes: 2x discs + pads + HEL cables
The set fits:
- Ford\Mustang (6th Generation)\2.3 Turbo 317BHP Vented Rear Discs (2015-) Brake Pads: DB9022
- Ford\Mustang (6th Generation)\5.0 416BHP (2015-) Brake Pads: DB9022
