Set of rear brake discs DBA 4000 series - T3 - DBA42809S + DBA Brake Pads Xtreme Performance (Hawk HB789x.600) + HEL braided brake lines Audi CUPRA Seat Skoda VOLKSWAGEN

Set:
Rear brake discs DBA 4000 series - T3 - DBA42809S
DBA Brake Pads Xtreme Performance brake pads (Hawk HB789x.600)
HEL braided brake lines - FREE!

Specification:

Suitable for street riding and occasional track riding
A perfectly matched and comprehensively tested brake disc and pad combination
DBA discs: Kangaroo Paw - 144 diamond and teardrop-shaped post ventilation system
DBA discs: T3 slots - additional number of degassing outlets allows friction gases to escape freely and improve pad grip
DBA discs: Thermal Stability Profiling (TSP) and increased disc durability under severe braking conditions
DBA brake pads: Semi-metallic carbon fiber friction material
DBA pads: GG friction class (0.45 medium mu from low to high temperatures)
DBA pads: Excellent performance at high temperatures
DBA pads: Optimal braking consistency up to 550℃ (1022℉)
Direct fit, requires no changes to the standard configuration

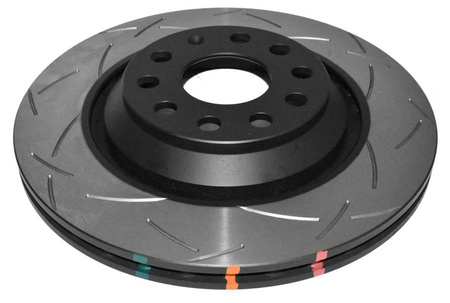

DBA 4000 series brake disc - T3

Catalog number: DBA42809S

Axle: rear

Diameter [mm]: 310

Shield type: Kangaroo Paw

Number of holes: 5

Inner diameter [mm]: 65

Minimum thickness [mm]: 20

Thickness [mm]: 22

Height [mm]: 48.5

Stage: Stage 4

Weight of 1 piece (kg): 7.11

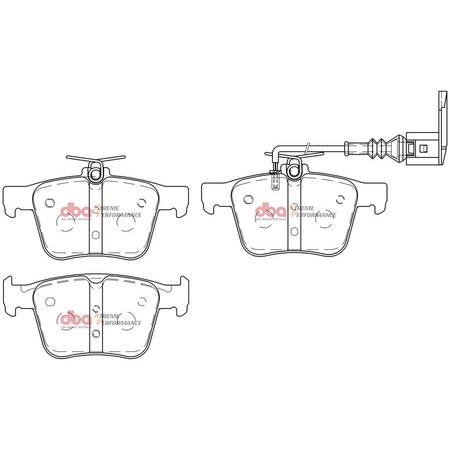

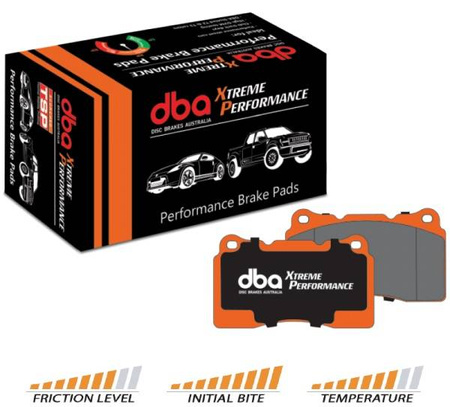

DBA Brake Pads Xtreme Performance brake pads (Hawk HB789x.600)

Catalog number: DB15006XP

Axle: rear

Width [mm]: 123

Height [mm]: I

Pad thickness [mm]: 15.2

FMSI:

OEM: 8V0698451G

Weight of 1 piece (kg): 1.39

Over forty years of manufacturing experience and unrivaled expertise through research and development, the DBA brand has established itself as Australia's most successful manufacturer and world leader in brake disc manufacturing.

Thanks to continuous improvement of technology and a desire for innovation, DBA has managed to redefine and provide brake discs for a wide variety of vehicle applications and in a wide range of conditions. When it comes to brake discs, as with all safety components, there can be no shortcuts. Drivers around the world value DBA products for consistency, reliability and excellent performance. DBA guarantees this by engineering disc brakes that are significantly superior to standard and equivalent disc brakes. How? DBA aims to provide high quality, accuracy, the best metals and production equipment that enable the production of the highest quality brake discs.

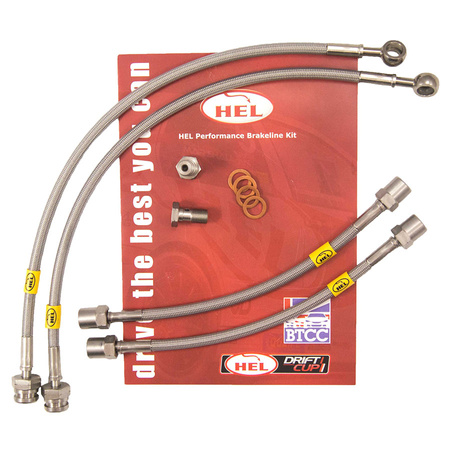

Brake lines include:

• Teflon cable with steel braid
• Stainless steel tips
• Stainless steel screws (depending on model)
• Copper washers
• Instructions
• Lifetime warranty



HEL Performance cables are available in 13 different colors:

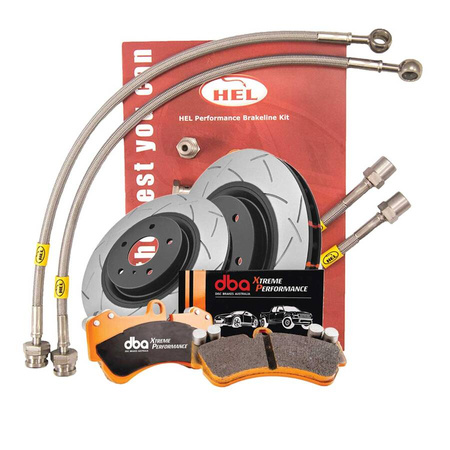

The set includes: 2x discs + pads + HEL cables

The set fits:

- VOLKSWAGEN\Arteon\1.5 Turbo 150BHP (2018-) Brake Pads: DB2384 Brake Caliper: ATE

- Skoda\ Superb (3T)\1.8 Turbo 150BHP 4WD (2008-2015) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\Passat Alltrack\1.8 Turbo 160BHP (2012-2015) Brake Pads: DB1865 Brake Caliper: TRW

- Skoda\ Superb (3T)\1.8 Turbo 160BHP 4WD (2008-2015) Brake Pads: DB1865 Brake Caliper: TRW

- Seat\ Leon (5F)\1.8 Turbo 180BHP (2013-2018) Brake Caliper: TRW

- VOLKSWAGEN\Passat Alltrack\2.0 TD 140BHP (2012-2015) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\Arteon\2.0 TD 150BHP (2017-) Brake Pads: DB2384 Brake Caliper: ATE

- VOLKSWAGEN\Passat Alltrack\2.0 TD 170BHP (2012-2015) Brake Pads: DB1865 Brake Caliper: TRW

- Skoda\ Superb (3T)\2.0 TD 170BHP 4WD (2008-2015) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\Passat Alltrack\2.0 TD 177BHP (2013-2015) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\Passat Alltrack (3G)\2.0 TD 184BHP (2015-) Brake Pads: DB2384 Brake Caliper: ATE

- VOLKSWAGEN\Passat Alltrack (3G)\2.0 TD 190BHP (2015-) Brake Pads: DB2384 Brake Caliper: ATE

- VOLKSWAGEN\Arteon\2.0 TD 190BHP (2018-) Brake Pads: DB2384 Brake Caliper: ATE

- VOLKSWAGEN\Arteon\2.0 TD 190BHP 4motion (2018-) Brake Pads: DB2384 Brake Caliper: ATE

- VOLKSWAGEN\Passat Alltrack (3G)\2.0 TD 240BHP (2015-) Brake Pads: DB2384 Brake Caliper: ATE

- Skoda\Kodiaq\2.0 TD RS 239BHP 4WD (2018-) Brake Pads: DB2384 Brake Caliper: ATE

- VOLKSWAGEN\Passat CC\2.0 Turbo (2008-2012) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\CC\2.0 Turbo (2012-2017) Brake Caliper: TRW

- VOLKSWAGEN\Arteon\2.0 Turbo 190BHP (2018-) Brake Pads: DB2384 Brake Caliper: ATE

- VOLKSWAGEN\Passat (B6)\2.0 Turbo 200BHP (2005-2010) Brake Pads: DB1865 Brake Caliper: TRW

- Skoda\ Superb (3T)\2.0 Turbo 200BHP (2010-2015) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\Passat Alltrack\2.0 Turbo 207BHP (2012-2015) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\Passat (B7)\2.0 Turbo 210BHP (2011-2014) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\Passat (B8)\2.0 Turbo 220BHP (2015-) Brake Pads: DB2384 Brake Caliper: ATE

- VOLKSWAGEN\Passat Alltrack (3G)\2.0 Turbo 220BHP (2015-) Brake Pads: DB2384 Brake Caliper: ATE

- Audi\TT 8S\2.0 Turbo 230BHP (2014-) Brake Pads: DB2384 Brake Caliper: ATE

- Audi\TT quattro 8S\2.0 Turbo 230BHP (2014-) Brake Pads: DB2384 Brake Caliper: ATE

- Audi\S3 8P\2.0 Turbo 265BHP PR-1LK (2006-2012) Brake Pads: DB1865 Brake Caliper: TRW

- Audi\S3 8P\2.0 Turbo 265BHP PR-1ZK (2006-2012) Brake Pads: DB1865 Brake Caliper: TRW

- Audi\S3 8V\2.0 Turbo 280BHP (2013-2016) Brake Pads: DB2415 Brake Caliper: ATE

- VOLKSWAGEN\Passat (B8)\2.0 Turbo 280BHP 4Motion (2016-) Brake Pads: DB2384 Brake Caliper: ATE

- VOLKSWAGEN\Arteon\2.0 Turbo 280BHP 4motion (2017-) Brake Pads: DB2384 Brake Caliper: ATE

- Skoda\ Superb (3V)\2.0 Turbo 280BHP 4x4 Vented rear discs (2015-) Brake Pads: DB2384 Brake Caliper: ATE

- CUPRA\Ateca\2.0 Turbo 296BHP (2018-) Brake Pads: DB2384 Brake Caliper: ATE

- Audi\S3 8V\2.0 Turbo 300BHP (2013-2016) Brake Pads: DB2415 Brake Caliper: ATE

- Audi\TTS quattro 8S\2.0 Turbo 310BHP (2014-) Brake Pads: DB2415 Brake Caliper: ATE

- Audi\TTS quattro 8S\2.0 Turbo 310BHP (2015-) Brake Pads: DB2415 Brake Caliper: ATE

- Audi\S3 8V\2.0 Turbo 310BHP (2016-2020) Brake Pads: DB2415 Brake Caliper: ATE

- Seat\ Leon (5F)\2.0 Turbo Cupra 265BHP (2014-2016) Brake Pads: DB1865 Brake Caliper: TRW

- Seat\ Leon (5F)\2.0 Turbo Cupra 280BHP (2014-2016) Brake Pads: DB1865 Brake Caliper: TRW

- Seat\ Leon (5F)\2.0 Turbo Cupra 290BHP (2015-2017) Brake Pads: DB1865 Brake Caliper: TRW

- Seat\ Leon (5F)\2.0 Turbo Cupra 300BHP (2017-2020) Brake Pads: DB2415 Brake Caliper: ATE

- Seat\ Leon (5F)\2.0 Turbo Cupra R 310BHP (2018-2020) Brake Pads: DB2415 Brake Caliper: ATE

- VOLKSWAGEN\ Golf (Mk7) Performance Package\2.0 Turbo GTi 230BHP (2013-2017) Brake Pads: DB2384 Brake Caliper: ATE

- VOLKSWAGEN\ Golf (Mk8)\2.0 Turbo GTi 245BHP (2019-)

- VOLKSWAGEN\ Golf (Mk7) Performance Package\2.0 Turbo GTi 247BHP (2017-2019) Brake Pads: DB2384 Brake Caliper: ATE

- VOLKSWAGEN\ Golf (Mk7) Clubsport\2.0 Turbo GTi 265BHP (2016-2019) Brake Pads: DB2384 Brake Caliper: ATE

- VOLKSWAGEN\ Golf (Mk7) TCR\2.0 Turbo GTi 290BHP (2019) Brake Pads: DB2415 Brake Caliper: ATE

- VOLKSWAGEN\ Golf (Mk8)\2.0 Turbo GTi 290BHP (2019-)

- VOLKSWAGEN\ Golf (Mk7) Clubsport S\2.0 Turbo GTi 310BHP (2016-2019) Brake Pads: DB2415 Brake Caliper: ATE

- VOLKSWAGEN\Scirocco\2.0 Turbo R 265BHP (2009-2014) Brake Pads: DB1865 Brake Caliper: Girling\TRW

- VOLKSWAGEN\ Golf (Mk6)\2.0 Turbo R 270BHP PR-1LK (2009-2013) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\ Golf (Mk6)\2.0 Turbo R 270BHP PR-1LM (2009-2013) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\ Golf (Mk6)\2.0 Turbo R 270BHP PR-1ZK (2009-2013) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\Scirocco\2.0 Turbo R 276BHP (2014-2017) Brake Pads: DB1865 Brake Caliper: Girling\TRW

- VOLKSWAGEN\ Golf (Mk7)\2.0 Turbo R 280BHP (2013-2019) Brake Pads: DB2415 Brake Caliper: ATE

- VOLKSWAGEN\ Golf (Mk7)\2.0 Turbo R 300BHP (2013-2019) Brake Pads: DB2415 Brake Caliper: ATE

- VOLKSWAGEN\ Golf (Mk7)\2.0 Turbo R 310BHP (2017-2019) Brake Pads: DB2415 Brake Caliper: ATE

- Skoda\Octavia (5E)\2.0 Turbo RS 245BHP (2017-2020) Brake Pads: DB1865 Brake Caliper: TRW

- Skoda\Octavia (5E)\2.0 Turbo vRS 245BHP (2017-2020) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\Passat (B8)\2.0 Twin TD 240BHP (2014-) Brake Pads: DB2384 Brake Caliper: ATE

- VOLKSWAGEN\Arteon\2.0 Twin TD 240BHP (2017-) Brake Pads: DB2384 Brake Caliper: ATE

- Audi\RSQ3 8U\2.5 Turbo 310BHP (2013-2014) Brake Caliper: TRW

- Audi\RS3 8P\2.5 Turbo 335BHP (2011-2013) Brake Pads: DB1865 Brake Caliper: TRW

- Audi\RSQ3 8U\2.5 Turbo 340BHP (2015-2018) Brake Caliper: TRW

- Audi\RS3 8V\2.5 Turbo 362BHP (2015-2016) Brake Pads: DB15006

- Audi\TTRS quattro 8S\2.5 Turbo 400BHP (2016-) Brake Pads: DB15006 Brake Caliper: ATE

- Audi\RSQ3 F3\2.5 Turbo 400BHP (2019-) Brake Pads: DB15006 Brake Caliper: ATE

- Audi\RS3 8V\2.5 Turbo 400BHP Hatchback (2017-2020) Brake Pads: DB15006

- Audi\RS3 8V\2.5 Turbo 400BHP Sedan (2017-2020) Brake Pads: DB15006

- Audi\RS3 8Y\2.5 Turbo 400BHP Sedan (2021-) Brake Pads: DB15006

- Audi\RSQ3 8U\2.5 Turbo Performance 367BHP (2016-2018) Brake Caliper: TRW

- Audi\A3 quattro 8P\3.2 (2003-2009) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\Passat (B6)\3.2 247BHP From chassis code 3C8 (2005-2010) Brake Caliper: TRW

- VOLKSWAGEN\Passat (B6)\3.2 247BHP To chassis code 3C7 (2005-2010) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\Eos\3.2 250BHP (2006-2009) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\ Golf (Mk5)\3.2 R32 250BHP (2005-2009) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\CC\3.6 (2012-2017) Brake Caliper: TRW

- VOLKSWAGEN\Eos\3.6 260BHP (2009-2011) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\Passat CC\3.6 4Motion (2008-2012) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\Passat (B7)\3.6 4Motion (2012-2014) Brake Caliper: TRW

- Skoda\ Superb (3T)\3.6 4WD 260BHP (2008-2015) Brake Pads: DB1865 Brake Caliper: TRW

- Skoda\ Superb (3T)\3.6 4WD 260BHP (2014-2015) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\Passat (B6)\3.6 From chassis code 3C8 (2007-2010) Brake Caliper: TRW

- VOLKSWAGEN\Passat (B7)\3.6 From chassis code 3C8 (2010-2012) Brake Caliper: TRW

- VOLKSWAGEN\Passat (B6)\3.6 To chassis code 3C7 (2007-2010) Brake Pads: DB1865 Brake Caliper: TRW

- VOLKSWAGEN\Passat (B7)\3.6 To chassis code 3C7 (2010-2012) Brake Pads: DB1865 Brake Caliper: TRW
