Set of front brake discs DBA 4000 series - T3 - DBA42830S + Front brake pads DBA Brake Pads Xtreme Performance ECE R90 certified Hawk HB779x.740 - DB8849XP + HEL braided brake lines Audi CUPRA Seat Skoda VOLKSWAGEN

Set:
Front brake discs DBA 4000 series - T3 - DBA42830S
DBA Brake Pads Xtreme Performance ECE R90 certified Hawk HB779x.740 front brake pads - DB8849XP
HEL braided brake lines - FREE!

Specification:

Suitable for street riding and occasional track riding
A perfectly matched and comprehensively tested brake disc and pad combination
DBA discs: Kangaroo Paw - 144 diamond and teardrop-shaped post ventilation system
DBA discs: T3 slots - additional number of degassing outlets allows friction gases to escape freely and improve pad grip
DBA discs: Thermal Stability Profiling (TSP) and increased disc durability under severe braking conditions
DBA brake pads: Semi-metallic carbon fiber friction material
DBA pads: GG friction class (0.45 medium mu from low to high temperatures)
DBA pads: Excellent performance at high temperatures
DBA pads: Optimal braking consistency up to 550℃ (1022℉)
Direct fit, requires no changes to the standard configuration

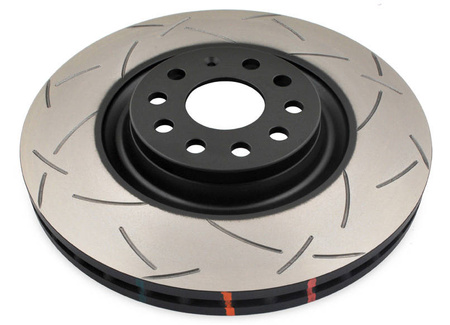

DBA 4000 series brake disc - T3

Catalog number: DBA42830S

Front axis

Diameter [mm]: 340

Shield type: Kangaroo Paw

Number of holes: 5

Inner diameter [mm]: 65

Minimum thickness [mm]: 28

Thickness [mm]: 30

Height [mm]: 49.7

Pitch Circle [mm]: 112

Stage: Stage 4

Weight of 1 piece (kg): 11.32

DBA Brake Pads Xtreme Performance ECE R90 certified (Hawk HB779x.740)

Catalog number: DB8849XP

Front axis

Width [mm]: 175.3

Height [mm]: 69.7

Pad thickness [mm]: 18.8

FMSI: 8849-D1633

OEM: 3C0698151H

ECE R90 Number: E11 R90-02A01584/49926

Weight of 1 piece (kg): 2.85

Over forty years of manufacturing experience and unrivaled expertise through research and development, the DBA brand has established itself as Australia's most successful manufacturer and world leader in brake disc manufacturing.

Thanks to continuous improvement of technology and a desire for innovation, DBA has managed to redefine and provide brake discs for a wide variety of vehicle applications and in a wide range of conditions. When it comes to brake discs, as with all safety components, there can be no shortcuts. Drivers around the world value DBA products for consistency, reliability and excellent performance. DBA guarantees this by engineering disc brakes that are significantly superior to standard and equivalent disc brakes. How? DBA aims to provide high quality, accuracy, the best metals and production equipment that enable the production of the highest quality brake discs.

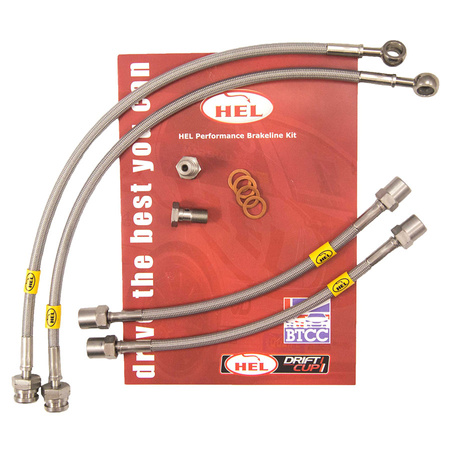

Brake lines include:

• Teflon cable with steel braid
• Stainless steel tips
• Stainless steel screws (depending on model)
• Copper washers
• Instructions
• Lifetime warranty



HEL Performance cables are available in 13 different colors:

The set includes: 2x discs + pads + HEL cables

The set fits:

- Skoda\Kodiaq\1.4 Turbo 125BHP 2WD (2016-2019) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Tiguan (Mk2)\1.4 Turbo 150BHP (2016-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Tiguan Allspace\1.4 Turbo 150BHP (2017-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Kodiaq\1.4 Turbo 150BHP 2WD (2016-2019) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Kodiaq\1.4 Turbo 150BHP 4WD (2016-2019) Brake Pads: DB8849 Brake Caliper: TRW

- Seat\Tarraco\1.5 Turbo 150BHP (2018-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Arteon\1.5 Turbo 150BHP (2018-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Kodiaq\1.5 Turbo 150BHP 2WD (2018-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Kodiaq\1.5 Turbo 150BHP 4WD (2018-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Octavia (5E)\1.8 Turbo 180BHP (2013-2020) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Octavia (5E)\1.8 Turbo 180BHP 4x4 (2013-2020) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Tiguan (Mk2)\2.0 TD 150BHP (2016-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Arteon\2.0 TD 150BHP (2017-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Tiguan Allspace\2.0 TD 150BHP (2017-) Brake Pads: DB8849 Brake Caliper: TRW

- Seat\Tarraco\2.0 TD 150BHP (2018-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Kodiaq\2.0 TD 150BHP 2WD (2016-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Tiguan Allspace\2.0 TD 150BHP 4Motion (2017-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Kodiaq\2.0 TD 150BHP 4WD (2016-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Octavia (5E)\2.0 TD 184BHP (2013-2020) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Passat Alltrack (3G)\2.0 TD 184BHP (2015-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Octavia (5E)\2.0 TD 184BHP 4x4 (2013-2020) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Passat Alltrack (3G)\2.0 TD 190BHP (2015-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Tiguan (Mk2)\2.0 TD 190BHP (2016-) Brake Pads: DB8849 Brake Caliper: TRW

- Seat\Tarraco\2.0 TD 190BHP (2018-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Arteon\2.0 TD 190BHP (2018-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Tiguan Allspace\2.0 TD 190BHP 4Motion (2017-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Arteon\2.0 TD 190BHP 4motion (2018-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Kodiaq\2.0 TD 190BHP 4WD (2016-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Passat Alltrack (3G)\2.0 TD 240BHP (2015-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Kodiaq\2.0 TD RS 239BHP 4WD (2018-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\CC\2.0 Turbo (2012-2017) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Tiguan (Mk2)\2.0 Turbo 180BHP (2016-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Tiguan Allspace\2.0 Turbo 180BHP 4Motion (2017-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Kodiaq\2.0 Turbo 180BHP 4WD (2016-2019) Brake Pads: DB8849 Brake Caliper: TRW

- Audi\Q3 quattro F3\2.0 Turbo 187BHP (2018-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Octavia (5E)\2.0 Turbo 190BHP (2017-2020) Brake Pads: DB8849 Brake Caliper: TRW

- Seat\Tarraco\2.0 Turbo 190BHP (2018-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Arteon\2.0 Turbo 190BHP (2018-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Kodiaq\2.0 Turbo 190BHP 4WD (2018-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Octavia (5E)\2.0 Turbo 190BHP 4x4 (2017-2020) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Passat (B8)\2.0 Turbo 220BHP (2015-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Passat Alltrack (3G)\2.0 Turbo 220BHP (2015-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Tiguan (Mk2)\2.0 Turbo 220BHP (2016-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Tiguan Allspace\2.0 Turbo 220BHP 4Motion (2017-) Brake Pads: DB8849 Brake Caliper: TRW

- Audi\Q3 quattro F3\2.0 Turbo 227BHP (2018-) Brake Pads: DB8849 Brake Caliper: TRW

- Audi\TT quattro 8S\2.0 Turbo 230BHP (2014-) Brake Pads: DB8849 Brake Caliper: TRW

- Audi\TT 8S\2.0 Turbo 230BHP (2014-) Brake Pads: DB8849 Brake Caliper: TRW

- Audi\S3 8V\2.0 Turbo 280BHP (2013-2016) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Passat (B8)\2.0 Turbo 280BHP 4Motion (2016-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Arteon\2.0 Turbo 280BHP 4motion (2017-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\ Superb (3V)\2.0 Turbo 280BHP 4x4 solid rear discs (2015-) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\ Superb (3V)\2.0 Turbo 280BHP 4x4 Vented rear discs (2015-) Brake Pads: DB8849 Brake Caliper: TRW

- CUPRA\Ateca\2.0 Turbo 296BHP (2018-) Brake Pads: DB8849 Brake Caliper: TRW

- Audi\S3 8V\2.0 Turbo 300BHP (2013-2016) Brake Pads: DB8849 Brake Caliper: TRW

- Audi\TTS quattro 8S\2.0 Turbo 310BHP (2014-) Brake Pads: DB8849 Brake Caliper: TRW

- Audi\TTS quattro 8S\2.0 Turbo 310BHP (2015-) Brake Caliper: ATE

- Audi\S3 8V\2.0 Turbo 310BHP (2016-2020) Brake Pads: DB8849 Brake Caliper: TRW

- Seat\ Leon (5F)\2.0 Turbo Cupra 265BHP (2014-2016) Brake Pads: DB8849 Brake Caliper: TRW

- Seat\ Leon (5F)\2.0 Turbo Cupra 280BHP (2014-2016) Brake Pads: DB8849 Brake Caliper: TRW

- Seat\ Leon (5F)\2.0 Turbo Cupra 290BHP (2015-2017) Brake Pads: DB8849 Brake Caliper: TRW

- Seat\ Leon (5F)\2.0 Turbo Cupra 300BHP (2017-2020) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\ Golf (Mk7) Performance Package\2.0 Turbo GTi 230BHP (2013-2017) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\ Golf (Mk8)\2.0 Turbo GTi 245BHP (2019-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\ Golf (Mk7) Performance Package\2.0 Turbo GTi 247BHP (2017-2019) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\ Golf (Mk7) Clubsport\2.0 Turbo GTi 265BHP (2016-2019) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\ Golf (Mk7) TCR\2.0 Turbo GTi 290BHP (2019) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\ Golf (Mk8)\2.0 Turbo GTi 290BHP (2019-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\ Golf (Mk7) Clubsport S\2.0 Turbo GTi 310BHP (2016-2019) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\ Golf (Mk7)\2.0 Turbo R 280BHP (2013-2019) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\ Golf (Mk7)\2.0 Turbo R 300BHP (2013-2019) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\ Golf (Mk7)\2.0 Turbo R 310BHP (2017-2019) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Octavia (5E)\2.0 Turbo RS 220BHP (2013-2017) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Octavia (5E)\2.0 Turbo RS 230BHP (2015-2019) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Octavia (5E)\2.0 Turbo RS 245BHP (2017-2020) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Octavia (5E)\2.0 Turbo vRS 220BHP (2013-2017) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Octavia (5E)\2.0 Turbo vRS 230BHP (2015-2019) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\Octavia (5E)\2.0 Turbo vRS 245BHP (2017-2020) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Tiguan Allspace\2.0 Twin TD 220BHP 4Motion (2017-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Passat (B8)\2.0 Twin TD 240BHP (2014-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Tiguan (Mk2)\2.0 Twin TD 240BHP (2016-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Arteon\2.0 Twin TD 240BHP (2017-) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\CC\3.6 (2012-2017) Brake Pads: DB8849 Brake Caliper: TRW

- VOLKSWAGEN\Passat (B7)\3.6 4Motion (2012-2014) Brake Pads: DB8849 Brake Caliper: TRW

- Skoda\ Superb (3T)\3.6 4WD 260BHP (2014-2015) Brake Pads: DB8849 Brake Caliper: TRW
