Ecumaster RF kit with RF receiver

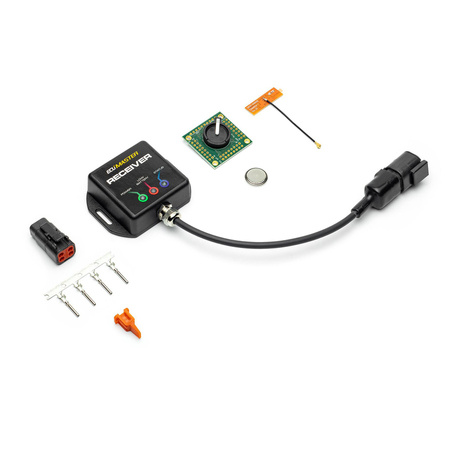

A kit enabling wireless communication between the RF steering panel and the CAN bus (Controller Area Network), the main vehicle communication system. The set includes the necessary connections with terminals for the receiver, antenna for the receiver, RF receiver, transmitter (PCB) and a battery to power the transmitter.
RF receiver
The RF receiver processes the signal received from the steering wheel's RF panel and transmits it via the CAN (Controller Area Network) bus, the vehicle's main communication system. Additionally, the RF receiver includes three status indicator LEDs, providing visual feedback on critical system parameters.
Green LED: Lit to indicate that the RF receiver is powered. If the power supply is correct, the LED should be lit continuously.
Red LED: Flashes to indicate the RF steering panel battery is low (approximately 20%). The battery should be replaced as soon as possible.
Blue LED: Flashes each time the panel successfully transmits data to the RF receiver. This means active communication.
Dimensions
Receiver specifications
Temperature range: AECQ GRADE3 (-40°C to +85°C)
Operating voltage: 6-22 V, resistance to transients according to ISO 7637 CAN CAN 2.0 A/B - 125, 250, 500, 1000 kbps
Dimensions: 68 x 50 x 20 mm
Weight: 50 g
Connector: Deutsch DTM04-4P (clamp included)
Cable length: 20 cm
Mounting mechanism: 2 x M3 screws
Number of RF steering panels supported: Up to 8
Battery
The CR2450 battery has been tested for durability and demonstrates efficient power consumption, lasting over 1.5 million button presses at room temperature. Battery charge level is transmitted via the CAN bus, providing real-time information.
Set contains:
-Transmitter (PCB)
-Battery to power the transmitter
-Antenna for the receiver
-Receiver (RF Reciver)
-Connector with terminals for the receiver
