Ecumaster Steering Wheel Control Panel - Wireless version

Ecumaster Steering Wheel Control Panel - Wireless version

The RF steering wheel panel offers a convenient and versatile vehicle control interface. Equipped with eight buttons and four rotary switches, it integrates with an RF receiver. Using advanced wireless radio frequency technology, the panel transmits data via the CAN bus, enabling a variety of in-car applications. Additionally, the panel supports connection to the shift paddles to expand functionality.

Made of lightweight carbon fiber for durability and style, the RF steering wheel panel offers a convenient and wireless way to control your car's functions. It is easily mounted to racing handlebars with a screw spacing of 6x70 mm and connects wirelessly to the RF receiver, eliminating unnecessary wires. The panel has 8 customizable buttons and 4 rotary switches so you can use them for your preferred functions. Included stickers help label each button for quick identification. For even more control, two dedicated connectors allow you to add paddle shifters (not included).

The RF steering panel integrates with other CAN bus devices. This ensures better connectivity and coordination between the various components of the vehicle's control system. The RF Steering Wheel Panel's CR2450 battery, tested for durability, demonstrates efficient power consumption, lasting over 1.5 million button presses at room temperature. The battery charge level is transmitted via the CAN bus, providing real-time information.

DIMENSIONS

SPECIFICATION

Temperature range: AECQ GRADE3 (-40°C to +85°C)
Battery type: CR2450 (included) Wireless communication
Frequency: radio
Range: frequencies from 2360 MHz to 2500 MHz
Estimated battery life: 5 years at rest at room temperature or 1,500,000 switches
Weight: 270 g Dimensions 200 x 130 x 40 mm
Mounting mechanism: 3 standard handlebar screws
Handlebar bolt spacing: 6 x 70 mm
Material: Carbon, with plastic backplate
Latency: Less than 20 ms
Buttons: 8 with customizable functions
Rotary switches: 4 with eight positions and configurable functions
Shift Paddles: 2 connectors, shift paddles are not included
Range: (line of sight) 100 m at highest power setting
Power levels: 7
Power range: -20 dBm to 4 dBm depending on the selected power level.

RECEIVER DESCRIPTION

The RF receiver processes the signal received from the RF steering wheel panel and transmits it via the CAN (Controller Area Network) bus, the vehicle's main communication system. Additionally, the RF receiver includes three status indicator LEDs, providing visual feedback on critical system parameters.

Green LED: Lit to indicate that the RF receiver is powered. If the power supply is correct, the LED should be lit continuously.

Red LED: Flashes to indicate the RF steering panel battery is low (approximately 20%). The battery should be replaced as soon as possible.

Blue LED: Flashes each time the panel successfully transmits data to the RF receiver. This means active communication.

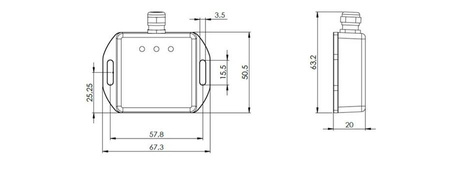

DIMENSIONS

RECEIVER SPECIFICATIONS

Temperature range: AECQ GRADE3 (-40°C to +85°C)
Operating voltage: 6-22 V, resistance to transients according to ISO 7637 CAN CAN 2.0 A/B - 125, 250, 500, 1000 kbps
Dimensions: 68 x 50 x 20 mm
Weight: 50 g
Connector: Deutsch DTM04-4P (clamp included)
Cable length: 20 cm
Mounting mechanism: 2 x M3 screws
Number of RF steering panels supported: Up to 8

Set contains:

1. RF steering panel
2. RF receiver
3. Battery: CR2450
4. Receiver connector (Deutsch DTM04-4P) with terminals
5. Shift paddle connector (ZHR-2) with terminals (SZH-002T-P0.5)
6. Self-adhesive stickers
7. Mounting screws of different lengths: 3x30, 3x55, 3x65mm
8. Mounting screws: 3xM3
