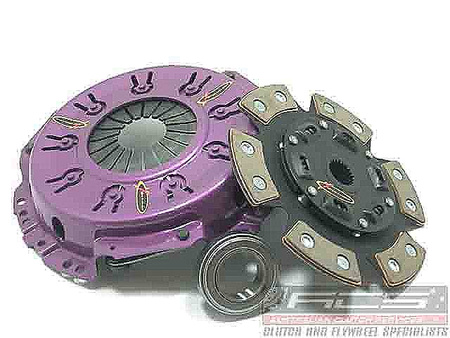

Xtreme Performance Toyota Supra Mk3 / Chaser / Hiace IV / Soarer - Race Sprung Ceramic 670Nm

Xtreme Performance Toyota Supra Mk3 / Chaser / Hiace IV / Soarer - Race Sprung Ceramic 670Nm

Add to shopping list
Product code: KTY23032-1R
Size
uniwersalny
748,67 €
incl. VAT / pc
Express checkout 1-Click(without registration)
On order
On order
Free and fast delivery from 82,30 €
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Product Description

Xtreme Performance Toyota Supra Mk3 / Chaser / Hiace IV / Soarer - KTY23032-1R

Index: KTY23032-1R

Fits:

- TOYOTA CHASER 2.4 TD (LX90) 1992.10-1996.08 2L-TII 2446 Diesel 69 kW 94 BHP
- TOYOTA HIACE IV 2.4 D (LH102. LH104. LH112) 1989.09-1995.08 2L 2446 Diesel 57 kW 78 BHP
- TOYOTA SOARER coupe 2.0 Turbo (GZ20) 1986.09-1991.03 1G-GTEU 1988 Petrol 136 kW 185 BHP
- TOYOTA SUPRA 2.0 i Bi-Turbo (GA70) 1986.02-1988.07 1G-GTEU 1988 Petrol 138 kW 188 BHP

Specs:
Clutch Disc Diameter (mm): 225

Clutch Disc Spline Count: 21

Clutch Disc Spline Diameter (mm): 29

Torque (Nm): 670

Flywheel Step: +.5mm/.020""

Design: Single Plate

Tech Bulletins:

Clamp Load:

Recommended for: Race Vehicles - Stage 2R

Xtreme Performance - Extra Heavy Duty Sprung Ceramic/-1R
Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

Specifications:
  • Torque capacity 670Nm
  • Clamp load Increased over standard
  • Sprung Ceramic Friction Disc
  • Extra Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Brand
Xtreme Clutch
