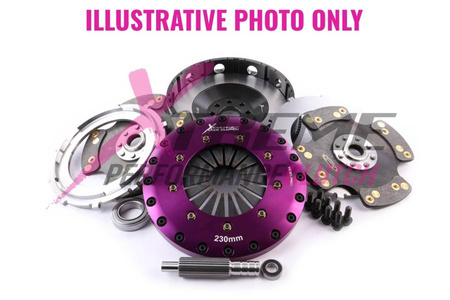

Xtreme Performance Nissan 350Z / Skyline - 230mm Carbon Twin Plate Clutch Kit Incl Flywheel 1670Nm

Xtreme Performance Nissan 350Z / Skyline - 230mm Carbon Twin Plate Clutch Kit Incl Flywheel 1670Nm

Add to shopping list
Product code: KNI23543-2P
Size
uniwersalny
2 827,01 €
incl. VAT / pc
Express checkout 1-Click(without registration)
On order
On order
Free and fast delivery from 82,76 €
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Product Description

Xtreme Motorsport Nissan 350Z / Skyline - KNI23543-2P

Index: KNI23543-2P

Fits:

- NISSAN 350Z coupe (Z33) 3.5 2002.09-2008.12 VQ35DE 3498 Petrol 221 kW 301 BHP
- NISSAN 350Z coupe (Z33) 3.5 2003.10-2006.12 VQ35DE 3498 Petrol 206 kW 280 BHP
- NISSAN 350Z Roadster (Z33) 3.5 2004.11-2007.01 VQ35DE 3498 Petrol 221 kW 301 BHP
- NISSAN 350Z Roadster (Z33) 3.5 2005.03-2007.12 VQ35DE 3498 Petrol 206 kW 280 BHP
- NISSAN SKYLINE (V35) 3.5 2001.02-2007.12 VQ35DE 3498 Petrol 200 kW 272 BHP
- NISSAN SKYLINE coupe (V35) 3.5 2003.01-2006.11 VQ35DE 3498 Petrol 206 kW 280 BHP
- NISSAN SKYLINE coupe (V35) 3.5 4x4 2003.08-2007.08 VQ35DE 3498 Petrol 206 kW 280 BHP

Specs:
Clutch Disc Diameter (mm): 230

Clutch Disc Spline Count: 24

Clutch Disc Spline Diameter (mm): 25.4

Torque (Nm): 1670

Flywheel Step: +3.8mm

Design: Twin Plate

Tech Bulletins:

Clamp Load:

Recommended for: Motorsport

-2P

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use.The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.
  Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1675Nm 1675Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 7.8kg 7.8kg
Disc Set Static Mass 1.75kg 1.75kg
Friction Thickness New 7.47mm (0.305") 7.47mm (0.305")
Friction Thickness Worn 7.24mm (0.285") 7.24mm (0.285")

Product Features:

  • Push type billet alloy cover
  • Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Carbon Friction Stable at extreme temperatures
  • Serviceable components
  • SFI certified design

Brand
Xtreme Clutch
