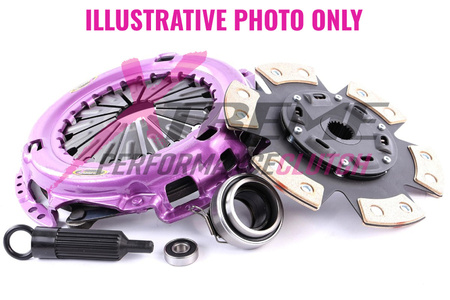

Xtreme Performance Mitsubishi Sigma Scorpion / Sigma - Heavy Duty Sprung Ceramic 430Nm 700kg (30% inc.)

Xtreme Performance Mitsubishi Sigma Scorpion / Sigma - KMI23009-1B

Index: KMI23009-1B

Fits:

- MITSUBISHI SIGMA 2.6 1980.05-1982.04 4G54 2555 Petrol 73 kW 99 BHP
- MITSUBISHI SIGMA SCORPION coupe 2.6 1979.07-1980.10 4G54 2555 Petrol 76 kW 103 BHP

Specs:
Clutch Disc Diameter (mm): 225

Clutch Disc Spline Count: 23

Clutch Disc Spline Diameter (mm): 26

Torque (Nm): 430

Flywheel Step: +.5mm/.020""

Design: Single Plate

Tech Bulletins:

Clamp Load: 700Kg (30% inc.)

Recommended for: Track - Stage 2

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 430Nm
• Clamp load 700kg 30% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
