Xtreme Performance Nissan 100NX / Almera I / Primera (P11) / Sunny III - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm
Xtreme Performance Nissan 100NX / Almera I / Primera (P11) / Sunny III - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm
Product Description
Xtreme Motorsport Nissan 100NX / Almera I / Primera (P11) / Sunny III - KNI20524-2E
Index: KNI20524-2E
Fits:
- NISSAN 100NX (B13) 2.0 GTI 1991.03-1994.10 SR20DE 1998 Petrol 105 kW 143 BHP
- NISSAN ALMERA I Hatchback (N15) 2.0 GTi 1996.07-2000.03 SR20DE 1998 Petrol 105 kW 143 BHP
- NISSAN ALMERA TINO (V10) 2.0 2000.08-2003.01 SR20DE 1998 Petrol 100 kW 136 BHP
- NISSAN PRIMERA (P11) 2.0 16V 1996.06-2001.12 SR20DE 1998 Petrol 105 kW 143 BHP
- NISSAN PRIMERA (P11) 2.0 16V 1996.09-2001.12 SR20DE 1998 Petrol 110 kW 150 BHP
- NISSAN PRIMERA (P11) 2.0 16V 1996.09-2001.12 SR20De 1998 Petrol 85 kW 115 BHP
- NISSAN PRIMERA (P11) 2.0 16V 1996.09-2001.12 SR20DE 1998 Petrol 96 kW 131 BHP
- NISSAN PRIMERA Hatchback (P11) 2.0 16V 1996.09-2002.07 SR20DE 1998 Petrol 110 kW 150 BHP
- NISSAN PRIMERA Hatchback (P11) 2.0 16V 1996.09-2002.07 SR20De 1998 Petrol 85 kW 115 BHP
- NISSAN PRIMERA Hatchback (P11) 2.0 16V 1996.09-2002.07 SR20DE 1998 Petrol 96 kW 131 BHP
- NISSAN SUNNY III (N14) 2.0 1990.08-1996.12 SR20DE 1998 Petrol 104 kW 141 BHP
- NISSAN SUNNY III (N14) 2.0 1991.10-1993.05 SR20DE 1998 Petrol 105 kW 143 BHP
- NISSAN SUNNY III (N14) 2.0 GTI 16V 1990.10-1995.05 SR20DE 1998 Petrol 105 kW 143 BHP
- NISSAN SUNNY III (N14) 2.0 i 16V 1990.10-1995.05 SR20DE 1998 Petrol 105 kW 143 BHP
Specs:
Clutch Disc Diameter (mm): 200
Clutch Disc Spline Diameter (mm): 20.5
Torque (Nm): 1200
Flywheel Step: +2.2mm
Design: Twin Plate
Tech Bulletins:
Clamp Load: 1100Kg
Recommended for: Motorsport
Xtreme Motorsport 200mm twin plate

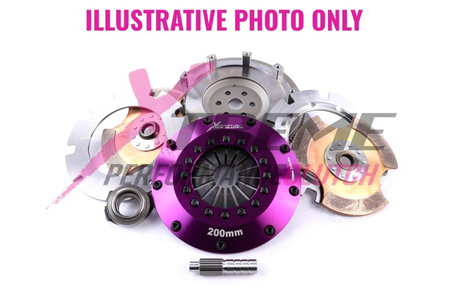

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
