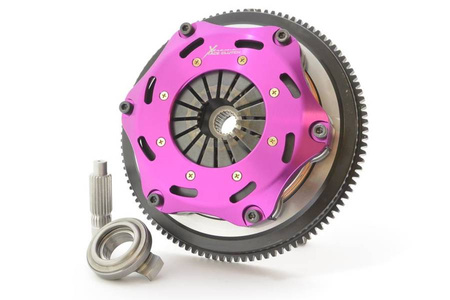

Xtreme Performance Toyota Corolla / MR2 I / Starlet / Carina - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm

Xtreme Performance Toyota Corolla / MR2 I / Starlet / Carina - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm

Add to shopping list
Product code: KTY18523-2E
Size
uniwersalny
1 517,13 €
incl. VAT / pc
Express checkout 1-Click(without registration)
On order
On order
Free and fast delivery from 82,70 €
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Product Description

Xtreme Motorsport Toyota Corolla / MR2 I / Starlet / Carina - KTY18523-2E

Index: KTY18523-2E

Fits:

- TOYOTA CARINA IV sedan 1.6 (AT151_) 1983.10-1987.11 4A-LC 1587 Petrol 55 kW 75 BHP
- TOYOTA COROLLA 1.6 (AE82) 1983.06-1987.08 4A-L 1587 Petrol 62 kW 84 BHP
- TOYOTA COROLLA Liftback 1.3 i (EE90) 1987.08-1992.04 2E, 2E-E 1296 Petrol 55 kW 75 BHP
- TOYOTA COROLLA Liftback 1.6 (AE82) 1983.06-1987.08 4A-L 1587 Petrol 62 kW 84 BHP
- TOYOTA COROLLA Liftback 1.6 (AE82) 1985.08-1987.08 4A-LC 1587 Petrol 54 kW 73 BHP
- TOYOTA COROLLA Station Wagon 1.3 (EE90) 1989.06-1992.06 2E 1296 Petrol 55 kW 75 BHP
- TOYOTA MR2 I 1.6 (AW11) 1984.11-1989.12 4A-GELC 1587 Petrol 80 kW 109 BHP
- TOYOTA MR2 I 1.6 16V (AW11) 1984.06-1989.11 4A-GEL 1587 Petrol 96 kW 131 BHP
- TOYOTA MR2 I 1.6 16V (AW11) 1984.11-1990.06 4A-GEL 1587 Petrol 91 kW 124 BHP
- TOYOTA MR2 I 1.6 16V (AW11) 1984.11-1990.06 4A-GELC 1587 Petrol 85 kW 116 BHP
- TOYOTA STARLET 1.5 D (NP70L) 1986.12-1989.12 1N 1453 Diesel 40 kW 54 BHP

Specs:
Clutch Disc Diameter (mm): 184

Clutch Disc Spline Count: 21

Clutch Disc Spline Diameter (mm): 23.8

Torque (Nm): 1060

Flywheel Step: +2.5mm

Design: Twin Plate

Tech Bulletins:

Clamp Load: 900Kg

Recommended for: Motorsport

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:
  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design
Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm) 185-10B-PP-L
Heavy Diaphragm Alloy Hat Assembly (2.8mm) 185-10B-PP
Pressure Plate Casting 185-10B-PPC
Intermediate Plate 185-10B-IP
Pressure Plate Bolt BOLT-8X1.125X50
Pressure Plate Washer WASHER-8MM-C
Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1060Nm 1210Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm
Assembly Mass (without flywheel) 4.45kg
Disc Set Static Mass 1.1kg
Friction Thickness New 6.35mm (0.250")
Friction Thickness Worn 5.97mm (0.235")

Brand
Xtreme Clutch
Entity responsible for this product in the EU
Ozparts B.V.More
Address: Weena 690Postal code: 3012CNCity: RotterdamCountry: HolandiaE-mail: customerservice@ozparts.eu
Symbol
KTY18523-2E
