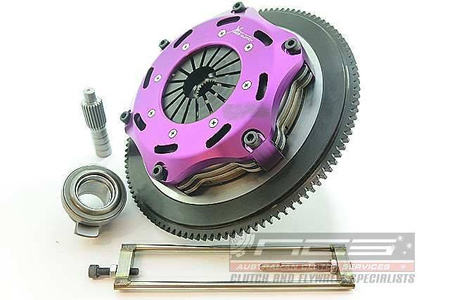

Xtreme Performance Mitsubishi Lancer Evo X - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm

Xtreme Performance Mitsubishi Lancer Evo X - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm

Add to shopping list
Product code: KMI18523-2E
Size
uniwersalny
1 829,60 €
incl. VAT / pc
Express checkout 1-Click(without registration)
Product unavailable, ask about the delivery date
Product unavailable, ask about the delivery date
Free and fast delivery from 82,66 €
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Product Description

Xtreme Motorsport Mitsubishi Lancer Evo X - KMI18523-2E

Index: KMI18523-2E

Fits:

- MITSUBISHI LANCER 2.0 i Ralliart 4WD (CY4A) 2008.10- 4B11-T C 1998 Petrol 177 kW 241 BHP
- MITSUBISHI LANCER 2.0 Ralliart 4WD (CX4A) 2008.10- 4B11-T C 1998 Petrol 177 kW 241 BHP
- MITSUBISHI LANCER EVO X - FQ400 (CZ4A) 2009.05-2010.12 4B11-T C 1998 Petrol 301 kW 409 BHP
- MITSUBISHI LANCER EVO X - FQ440 (CZ4A) 2014.05-2014.06 4B11-T C 1998 Petrol 328 kW 446 BHP
- MITSUBISHI LANCER EVO X (CZ4A) 2008.06-2015.03 4B11-T C 1998 Petrol 221 kW 301 BHP
- MITSUBISHI LANCER EVO X (CZ4A) 2008.06-2015.12 4B11-T C 1998 Petrol 217 kW 295 BHP
- MITSUBISHI LANCER EVO X (CZ4A) 2014.09-2015.12 4B11-T C 1998 Petrol 226 kW 307 BHP

Specs:
Clutch Disc Diameter (mm): 184

Clutch Disc Spline Count: 23

Clutch Disc Spline Diameter (mm): 26

Torque (Nm): 1220

Flywheel Step: +2.5mm

Design: Twin Plate

Tech Bulletins:

Clamp Load: 900Kg

Recommended for: Motorsport

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:
  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design
Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm) 185-10B-PP-L
Heavy Diaphragm Alloy Hat Assembly (2.8mm) 185-10B-PP
Pressure Plate Casting 185-10B-PPC
Intermediate Plate 185-10B-IP
Pressure Plate Bolt BOLT-8X1.125X50
Pressure Plate Washer WASHER-8MM-C
Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1060Nm 1210Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm
Assembly Mass (without flywheel) 4.45kg
Disc Set Static Mass 1.1kg
Friction Thickness New 6.35mm (0.250")
Friction Thickness Worn 5.97mm (0.235")
