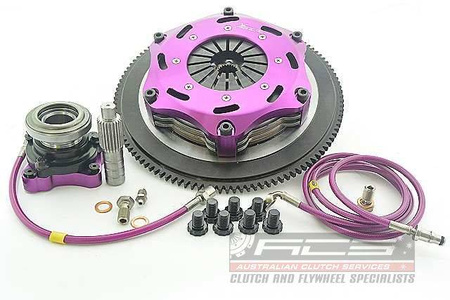

Xtreme Performance Mitsubishi Lancer Evo X - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1220Nm

  • Xtreme Performance Mitsubishi Lancer Evo X - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1220Nm
Product code: KMI18683-2E
2 465,88 €
Add to wish list
Easy product returns
Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.
PRODUCT DESCRIPTION

Xtreme Motorsport Mitsubishi Lancer Evo X - KMI18683-2E

Index: KMI18683-2E

Fits:

- MITSUBISHI LANCER 2.0 i Ralliart 4WD (CY4A) 2008.10- 4B11-T C 1998 Petrol 177 kW 241 BHP
- MITSUBISHI LANCER 2.0 Ralliart 4WD (CX4A) 2008.10- 4B11-T C 1998 Petrol 177 kW 241 BHP
- MITSUBISHI LANCER EVO X - FQ400 (CZ4A) 2009.05-2010.12 4B11-T C 1998 Petrol 301 kW 409 BHP
- MITSUBISHI LANCER EVO X - FQ440 (CZ4A) 2014.05-2014.06 4B11-T C 1998 Petrol 328 kW 446 BHP
- MITSUBISHI LANCER EVO X (CZ4A) 2008.06-2015.03 4B11-T C 1998 Petrol 221 kW 301 BHP
- MITSUBISHI LANCER EVO X (CZ4A) 2008.06-2015.12 4B11-T C 1998 Petrol 217 kW 295 BHP
- MITSUBISHI LANCER EVO X (CZ4A) 2014.09-2015.12 4B11-T C 1998 Petrol 226 kW 307 BHP

Specs:
Clutch Disc Diameter (mm): 184

Clutch Disc Spline Count: 23

Clutch Disc Spline Diameter (mm): 26

Torque (Nm): 1220

Flywheel Step: +2.5mm

Design: Twin Plate

Tech Bulletins:

Clamp Load:

Recommended for: Motorsport

-2E

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

  Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1060Nm 1210Nm
Bearing Contact Diameter 44-52mm 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm 5mm
Assembly Mass (without flywheel) 4.45kg 4.45kg
Disc Set Static Mass 1.1kg
Friction Thickness New 6.35mm (0.250") 6.35mm (0.250")
Friction Thickness Worn 5.97mm (0.235") 5.97mm (0.235")

Product Features:

  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design

Tech specs:
