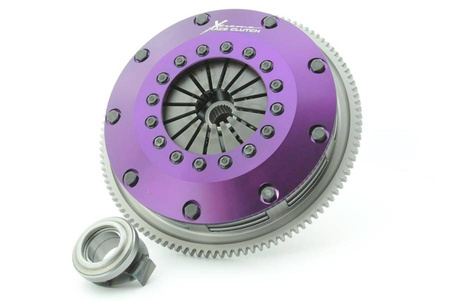

Xtreme Performance Honda Civic V, VI / CR-V I / Integra - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm

Xtreme Performance Honda Civic V, VI / CR-V I / Integra - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm

Add to shopping list
Product code: KHN20522-2B
Size
uniwersalny
1 576,36 €
incl. VAT / pc
Express checkout 1-Click(without registration)
On order
On order
Free and fast delivery from 82,65 €
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Product Description

Xtreme Motorsport Honda Civic V, VI / CR-V I / Integra - KHN20522-2B

Index: KHN20522-2B

Fits:

- HONDA CIVIC V 1.6 VTi (EG9) 1991.10-1995.11 B16A2 1595 Petrol 118 kW 160 BHP
- HONDA CIVIC V 1.6 VTi 16V (EG6) 1991.10-1995.11 B16A2 1595 Petrol 118 kW 160 BHP
- HONDA CIVIC VI 1.6 i Vtec (EM1) 1999.04-2000.12 B16A2 1595 Petrol 118 kW 160 BHP
- HONDA CIVIC VI 1.6 VTi (EK4) 1995.11-2001.02 B16A2 1595 Petrol 118 kW 160 BHP
- HONDA CIVIC VI 1.8 16V (MB6) 1997.01-2001.02 B18C4 1797 Petrol 124 kW 169 BHP
- HONDA CIVIC VI 1.8 16V (MC2) 1998.04-2001.02 B18C4 1797 Petrol 124 kW 169 BHP
- HONDA CR-V I 2.0 (RD1) 1999.04-2002.02 B20Z1 1973 Petrol 98 kW 133 BHP
- HONDA CR-V I 2.0 16V 4WD (RD1. RD3) 1995.10-2001.12 B20B 1973 Petrol 94 kW 128 BHP
- HONDA CR-V I 2.0 16V 4WD (RD1. RD3) 1999.01-2002.02 B20Z1 1973 Petrol 108 kW 147 BHP
- HONDA INTEGRA 1.8 (DC2) 1993.07-2001.11 B18B1 1834 Petrol 101 kW 137 BHP
- HONDA INTEGRA 1.8 (DC2) 1993.07-2001.11 B18B2 1834 Petrol 107 kW 146 BHP
- HONDA INTEGRA 1.8 ESI (DB7) 1993.09-2001.08 B18B2 1834 Petrol 107 kW 145 BHP
- HONDA INTEGRA 1.8 Type-R (DC2) 1997.11-2001.10 B18C6 1797 Petrol 140 kW 190 BHP
- HONDA INTEGRA 1.8 VTiR (DC2) 1993.07-1999.11 B18C2 1797 Petrol 125 kW 170 BHP

Specs:
Clutch Disc Diameter (mm): 200

Clutch Disc Spline Count: 24

Clutch Disc Spline Diameter (mm): 26

Torque (Nm): 1200

Flywheel Step: +2.2mm

Design: Twin Plate

Tech Bulletins:

Clamp Load:

Recommended for: Motorsport

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • High torque sprung driven discs (common hub)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7.4kg
Disc Set Static Mass 2.15kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")

Brand
Xtreme Clutch
Entity responsible for this product in the EU
Ozparts B.V.More
Address: Weena 690Postal code: 3012CNCity: RotterdamCountry: NetherlandsE-mail: customerservice@ozparts.eu
Symbol
KHN20522-2B
