Xtreme Performance Subaru Impreza / WRX - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm

  • Xtreme Performance Subaru Impreza / WRX - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm
Product code: KSU20521-2B
size
1 830,49 €
/ pc excl. Shipping costs
Add to wish list
Easy product returns
Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.
PRODUCT DESCRIPTION

Xtreme Motorsport Subaru Impreza / WRX - KSU20521-2B

Index: KSU20521-2B

Fits:

- SUBARU Impreza 2.0 AWD (GC8) 1998.09-2000.09 EJ205P 1994 Petrol 206 kW 280 BHP
- SUBARU Impreza 2.0 AWD (GDB) 2005.10-2007.03 EJ207 1994 Petrol 206 kW 280 BHP
- SUBARU Impreza 2.0 Turbo AWD (GGA) 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP
- SUBARU Impreza 2.0 Turbo GT AWD (GC8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP
- SUBARU Impreza 2.0 Turbo GT AWD (GF8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP
- SUBARU Impreza 2.0 WRX AWD (GGA) 2001.09-2005.12 EJ205 1994 Petrol 169 kW 230 BHP
- SUBARU Impreza 2.0 WRX STi AWD 2004.02-2005.07 EJ207 1994 Petrol 235 kW 320 BHP
- SUBARU Impreza 2.0 WRX STi AWD (GDB) 2001.11-2005.07 EJ207 1994 Petrol 195 kW 265 BHP
- SUBARU Impreza 2.0 WRX STi AWD (GGB) 2000.10-2002.10 EJ207 1994 Petrol 206 kW 280 BHP
- SUBARU Impreza 2.0 WRX Turbo AWD (GDA) 6 speed 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP
- SUBARU Impreza 2.0 WRX Turbo AWD (GGA) 2002.12-2006.09 EJ205 1994 Petrol 165 kW 225 BHP
- SUBARU Impreza 2.5 AWD 2005.10-2007.03 EJ257 2457 Petrol 221 kW 300 BHP
- SUBARU Impreza 2.5 AWD (GDF) 2005.10-2007.03 EJ257 2457 Petrol 221 kW 300 BHP
- SUBARU Impreza 2.5 i WRX STI AWD 2005.09-2007.12 EJ257 2457 Petrol 195 kW 265 BHP
- SUBARU Impreza 2.5 STI CS400 AWD (GRF) 2010.04-2013.08 EJ257 2457 Petrol 294 kW 400 BHP
- SUBARU Impreza 2.5 WRX STI 330S AWD 2009.05-2010.12 EJ257 2457 Petrol 243 kW 330 BHP
- SUBARU Impreza 2.5 WRX STi AWD (GDF) 2005.09-2007.12 EJ257 2457 Petrol 206 kW 280 BHP
- SUBARU Impreza 2.5 WRX STI AWD (GRF) 2008.01-2013.08 EJ257 2457 Petrol 221 kW 301 BHP
- SUBARU Impreza 2.5 WRX STI AWD (GVF) 2010-2014 EJ255 2457 Petrol 221 kW 301 BHP
- SUBARU WRX sedan 2.0 AWD (GK6. GK8) 2013.09-2018 FA20F, FA20E 1998 Petrol 197 kW 268 BHP
- SUBARU WRX sedan 2.0 AWD (GK6. GK8) 2019- FA20F, FA20E 1998 Petrol 197 kW 268 BHP
- SUBARU WRX sedan STi 2.5 AWD 2014.06- EJ257 2457 Petrol 221 kW 301 BHP

Specs:
Clutch Disc Diameter (mm): 200

Clutch Disc Spline Count: 24

Clutch Disc Spline Diameter (mm): 25.2

Torque (Nm): 1200

Flywheel Step: -15.0mm/.590""

Design: Twin Plate

Tech Bulletins:

Clamp Load: 1100Kg

Recommended for: Motorsport

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

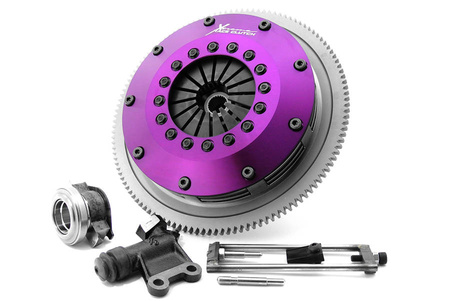

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • High torque sprung driven discs (common hub)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7.4kg
Disc Set Static Mass 2.15kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")

Tech specs:
