Xtreme Performance Toyota Chaser / Mark II / Soarer / Supra - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm

Xtreme Performance Toyota Chaser / Mark II / Soarer / Supra - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm

Add to shopping list
Product code: KTY20530-2B
Size
uniwersalny
1 959,20 €
incl. VAT / pc
Express checkout 1-Click(without registration)
In stock
In stock
Free and fast delivery from 82,17 €
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Product Description

Xtreme Motorsport Toyota Chaser / Mark II / Soarer / Supra - KTY20530-2B

Index: KTY20530-2B

Fits:

- TOYOTA CHASER 2.5 (JZX100_) 1996.10-2001.05 1JZ-GE 2491 Petrol 147 kW 200 BHP
- TOYOTA CHASER 2.5 (JZX100_) 1996.10-2001.05 1JZ-GTE 2491 Petrol 206 kW 280 BHP
- TOYOTA CHASER 2.5 (JZX90. JZX93) 1992.10-1996.08 1JZ-GE 2491 Petrol 132 kW 180 BHP
- TOYOTA CHASER 2.5 Turbo (JZX90) 1992.10-1996.08 1JZ-GTE 2491 Petrol 206 kW 280 BHP
- TOYOTA MARK II VI sedan 2.5 (JZX110) 1992.10-1996.09 1JZ-GTE 2491 Petrol 206 kW 280 BHP
- TOYOTA MARK II VIII sedan 2.5 VVTi (JZX100) 1996.10-2001.09 1JZ-GTE 2491 Petrol 206 kW 280 BHP
- TOYOTA SOARER coupe 2.5 Turbo (JZZ30) 1990.09-2000.09 1JZ-GTE 2491 Petrol 206 kW 280 BHP
- TOYOTA SUPRA 2.5 i Bi-Turbo (JZA70) 1990.08-1993.05 1JZ-GTE 2491 Petrol 206 kW 280 BHP

Specs:
Clutch Disc Diameter (mm): 200

Clutch Disc Spline Count: 21

Clutch Disc Spline Diameter (mm): 29.8

Torque (Nm): 1200

Flywheel Step: +2.2mm

Design: Twin Plate

Tech Bulletins:

Clamp Load:

Recommended for: Motorsport

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

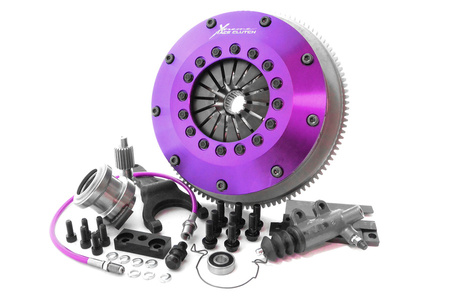

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • High torque sprung driven discs (common hub)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7.4kg
Disc Set Static Mass 2.15kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")

Brand
Xtreme Clutch
