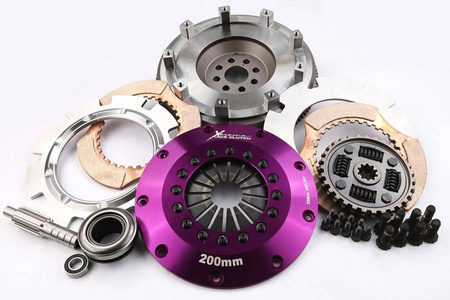

Xtreme Performance BMW E30 / E36 / E46 / E34 / Z3 E36 - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm

Xtreme Performance BMW E30 / E36 / E46 / E34 / Z3 E36 - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm

Add to shopping list
Product code: KBM20530-2B
Size
uniwersalny
2 002,86 €
incl. VAT / pc
Express checkout 1-Click(without registration)
On order
On order
Free and fast delivery from 82,70 €
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Product Description

Xtreme Motorsport BMW E30 / E36 / E46 / E34 / Z3 E36 - KBM20530-2B

Index: KBM20530-2B

Fits:

- BMW 3-Series 318 is E30 1989-1991 1796cc | 100KW | 136HP | M42 B18 (184S1)
- BMW 3-Series 318 is E36 1993-1995 1796cc | 103KW | 140HP | M42 B18 (184S1)
- BMW 3-Series 318 is E36 1992-1995 1796cc | 103KW | 140HP | M42 B18 (184S1)
- BMW 3-Series 318 is E36 1995-1999 1895cc | 103KW | 140HP | M44 B19 (194S1)
- BMW 3-Series 318 is E36 1996-1998 1895cc | 103KW | 140HP | M44 B19 (194S1)
- BMW 3-Series 318 ti E36 1994-1995 1796cc | 103KW | 140HP | M42 B18 (184S1)
- BMW 3-Series 318 ti E36 1996-1999 1895cc | 103KW | 140HP | M44 B19 (194S1)
- BMW 3-Series 320 Ci E46 1999-2001 1990cc | 110KW | 150HP | M52 B20 (206S4)
- BMW 3-Series 320 Ci E46 2000-2007 2171cc | 125KW | 170HP | M54 B22 (226S1)
- BMW 3-Series 320 i E46 1998-2000 1990cc | 110KW | 150HP | M52 B20 (206S4)
- BMW 3-Series 320 i E46 1999-2000 1990cc | 110KW | 150HP | M52 B20 (206S4)
- BMW 3-Series 323 Ci E46 1999-2000 2494cc | 125KW | 170HP | M52 B25 (256S4)
- BMW 3-Series 323 i E46 1998-2000 2494cc | 125KW | 170HP | M52 B25 (256S4)
- BMW 3-Series 323 ti E36 1997-2000 2494cc | 125KW | 170HP | M52 B25 (256S3)
- BMW 3-Series 325 i E36 1990-1995 2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2)
- BMW 3-Series 325 i E36 1991-1995 2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2)
- BMW 3-Series 325 i E36 1993-1995 2494cc | 141KW | 192HP | M50 B25 (256S2)
- BMW 3-Series 328 Ci E46 1998-2000 2793cc | 142KW | 193HP | M52 B28 (286S2)
- BMW 3-Series 328 i E36 1995-1999 2793cc | 142KW | 193HP | M52 B28 (286S1)
- BMW 3-Series 328 i E36 1995-1998 2793cc | 142KW | 193HP | M52 B28 (286S1)
- BMW 3-Series 328 i E46 1998-2000 2793cc | 142KW | 193HP | M52 B28 (286S2)
- BMW 3-Series 328 i E46 1999-2000 2793cc | 142KW | 193HP | M52 B28 (286S2)
- BMW 3-Series M3 3.0 E36 1992-1995 2990cc | 210KW | 286HP | S50 B30 (306S1)
- BMW 3-Series M3 3.0 E36 1994-1995 2990cc | 210KW | 286HP | S50 B30 (306S1)
- BMW 3-Series M3 3.0 E36 1993-1995 2990cc | 217KW | 295HP | S50 B30 (306S1)
- BMW 3-Series M3 3.2 E36 1995-1998 3201cc | 236KW | 321HP | S50 B32 (326S1)
- BMW 3-Series M3 3.2 E36 1996-1999 3201cc | 236KW | 321HP | S50 B32 (326S1)
- BMW 5-Series 518 i E34 1989-1994 1796cc | 83KW | 113HP | M40 B18 (184E1)
- BMW 5-Series 518 i E34 1993-1994 1796cc | 83KW | 113HP | M40 B18 (184E1)
- BMW 5-Series 518 i E34 1994-1995 1796cc | 85KW | 115HP | M43 B18 (184E2)
- BMW 5-Series 518 i E34 1994-1996 1796cc | 85KW | 115HP | M43 B18 (184E2)
- BMW Z3 1.9 i E36 1995-1999 1895cc | 103KW | 140HP | M44 B19 (194S1)
- BMW Z3 M E36 1998-2001 3201cc | 236KW | 321HP | S50 B32 (326S1);S50 B32 (326S3)
- BMW Z3 M 3.2 E36 1997-2000 3201cc | 236KW | 321HP | S50 B32 (326S1)

Specs:
Clutch Disc Diameter (mm): 200

Clutch Disc Spline Count: 10

Clutch Disc Spline Diameter (mm): 29

Torque (Nm): 1200

Flywheel Step: +2.2mm

Design: Twin Plate

Tech Bulletins:

Clamp Load: 1000kg

Recommended for: Motorsport

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • High torque sprung driven discs (common hub)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7.4kg
Disc Set Static Mass 2.15kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")

Brand
Xtreme Clutch
