Xtreme Clutch BMW E46 / E60 / X3 (E83) / X5 (E53) - Conversion kit BMW S54 - BMW 22x29mm

Xtreme Clutch BMW E46 / E60 / X3 (E83) / X5 (E53) - Conversion kit BMW S54 - BMW 22x29mm

Add to shopping list
Product code: KBM23554-2E
Size
uniwersalny
2 528,24 €
incl. VAT / pc
Express checkout 1-Click(without registration)
Product unavailable, ask about the delivery date
Product unavailable, ask about the delivery date
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Product Description

Xtreme Motorsport Flywheel BMW E46 / E60 / X3 (E83) / X5 (E53) - KBM23554-2E

Index: KBM23554-2E

Fits:

- BMW 3-Series 330 Ci E46 2000-2006 2979cc | 170KW | 231HP | M54 B30 (306S3)
- BMW 3-Series 330 i E46 2000-2005 2979cc | 170KW | 231HP | M54 B30 (306S3)
- BMW 3-Series 330 i E46 2001-2005 2979cc | 168KW | 228HP | M54 B30 (306S3)
- BMW 3-Series 330 xi E46 2000-2005 2979cc | 170KW | 231HP | M54 B30 (306S3)
- BMW 3-Series 330 xi E46 2000-2006 2979cc | 170KW | 231HP | M54 B30 (306S3)
- BMW 5-Series 520 i E60 2003-2010 2171cc | 125KW | 170HP | M54 B22 (226S1)
- BMW 5-Series 525 i E60 2003-2005 2494cc | 141KW | 192HP | M54 B25 (256S5)
- BMW 5-Series 525 i E61 2004-2010 2494cc | 141KW | 192HP | M54 B25 (256S5)
- BMW 5-Series 530 i E60 2001-2005 2979cc | 170KW | 231HP | M54 B30 (306S3)
- BMW X3 3.0 i xDrive E83 2003-2006 2979cc | 170KW | 231HP | M54 B30 (306S3)
- BMW X5 3.0 i E53 2000-2006 2979cc | 170KW | 231HP | M54 B30 (306S3)

Specs:
Clutch Disc Diameter (mm): 230

Clutch Disc Spline Count: 22

Clutch Disc Spline Diameter (mm): 29

Torque (Nm): 1830

Flywheel Step: +3.8mm

Design: Twin Plate

Tech Bulletins:

Clamp Load:

Recommended for: Motorsport

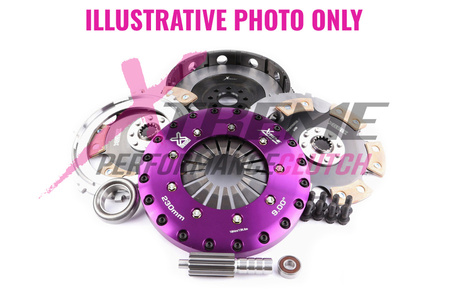

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

  • Torque capacity 1800Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1800Nm 1800Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")

Brand
Xtreme Clutch
Entity responsible for this product in the EU
Ozparts B.V.More
Address: Weena 690Postal code: 3012CNCity: RotterdamCountry: HolandiaE-mail: customerservice@ozparts.eu
Symbol
KBM23554-2E
