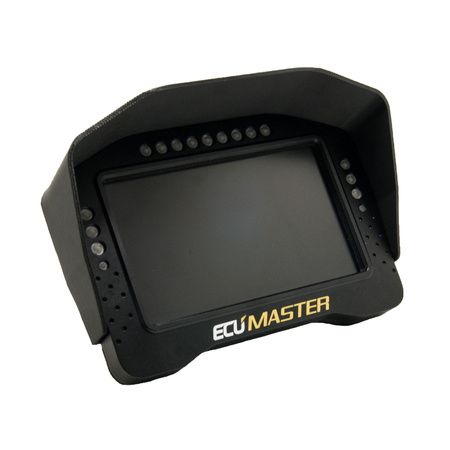

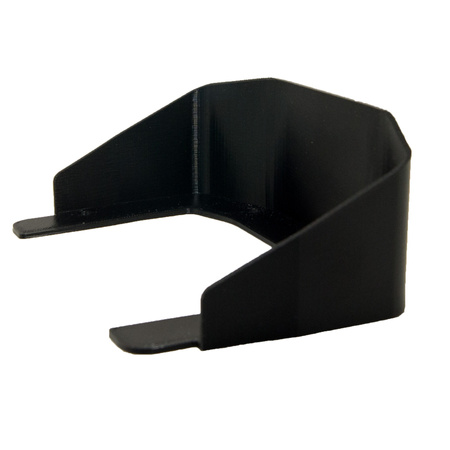

  • Peak for ECU Master ADU 5"
  • Display Ecumaster ADU 5" Rev. 2
Product code: 3S2ADU0002 + IRP0838
1 104,24 € You save 2.00% (22.54) when buying in a set.
1126.78
Add to wish list

In a set

Easy product returns
Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability
PRODUCT DESCRIPTION

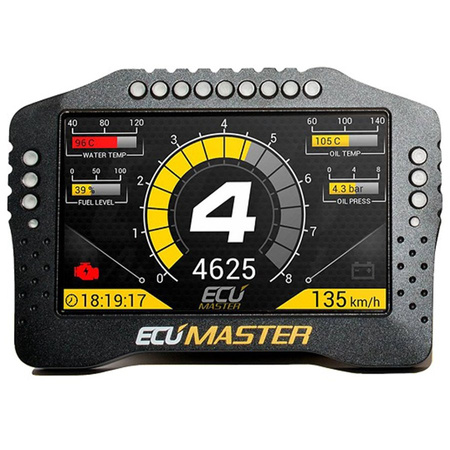

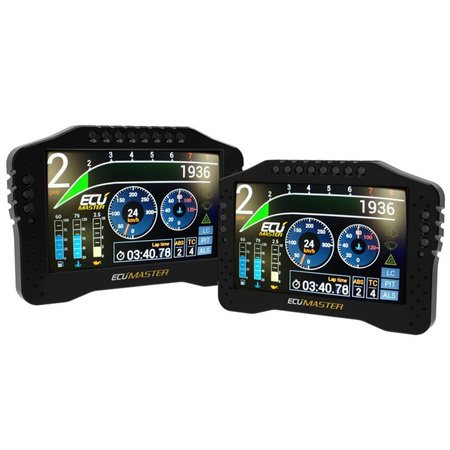

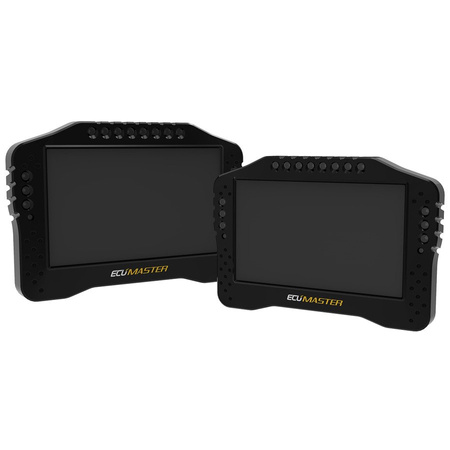

Ecumaster ADU 5" Rev. 2 multifunction display


was created after consultations with rally drivers and engineers to ensure the highest quality of the product and allow for comfortable and easy use of the device. The ADU transmits and displays information allowing you to maintain as much control over the vehicle as possible.

HIGH FUNCTIONALITY

ECU Master ADU 5" has a high-resolution screen with a very clear anti-reflective coating, thanks to which it maintains excellent visibility in all conditions. It has several pre-configured pages that can be freely adapted to each other. Pages can be changed manually or automatically. Each element of the page has the ability to modifications using a windows-based system, and the overlays facilitate the display of many pages with freely selected data, i.e. best lap or low oil pressure error.

Reliability!

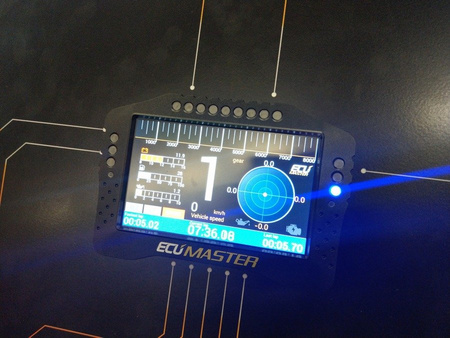

The ADU is also equipped with 15 very bright RGB LEDs that can be used as gear-dependent lighting and can be modified to suit the user's preferences (alarms, low fuel level, etc.). Using infrared diodes or a GPS system, the display turns into a powerful lap timer with a predictive time measurement function. By selecting the Qualification page you enable "Qualification Mode" which uses advanced timing recalculation based on an automatically updated "best" reference lap. User-configurable timers can be customized for additional functionality (pit stops, etc.). The ADU also supports thermal cameras for monitoring brake discs or tire temperatures (up to 16 points per tire).

SPECIFICATION:

MAIN

Operating temperature range

-40 to 85C

Processor

32 bit, automotive, 90MIPS

Reverse polarity protection

Yes, Internal

Operating voltage range

6-22V, surge resistance according to ISO 7637

Case

Anodized aluminum, CNC machining

waterproof

IP60

Nest

1 x 35 AMP automotive

PC communication

CAN using the Peak, Kvaser or Ecumaster interface

Display type

TFT 800x600

Display brightness

5” - 600cd/m2, 7” - 1000cd/m2

COMMUNICATION

USB

For logging on an external USB stick

CAN interface

2 x CAN2.0 A/B, 250, 500, 1000 Kbps

serial link

RS232 Rx/Tx, AiM, Ecumaster, Hondata Kpro protocols

CAN streams

User defined
