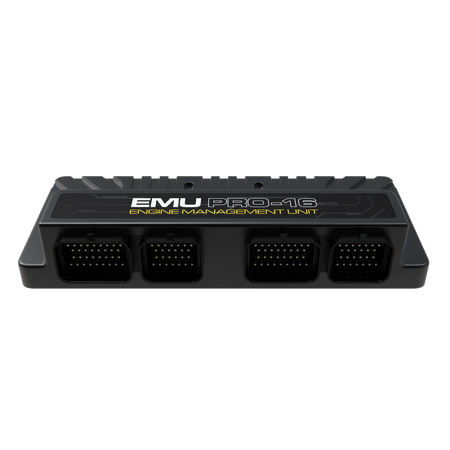

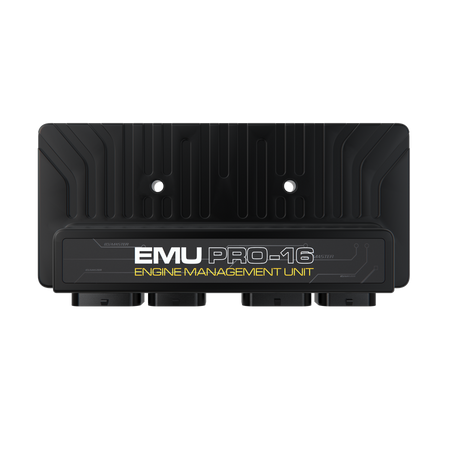

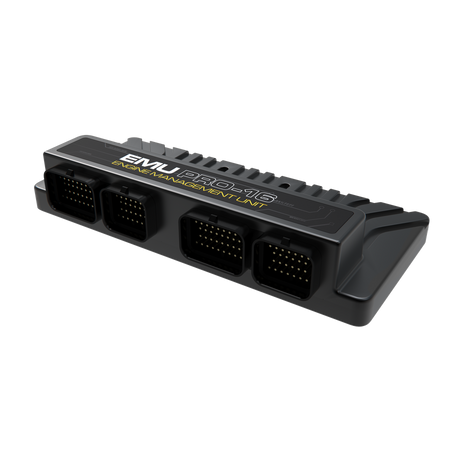

ECUMASTER EMU PRO 16
It is a standalone engine management system designed specifically for professionals. It has a very rich range of functions, thanks to which it allows for huge tuning possibilities. Precise control of the powertrain combined with the highest flexibility of engine customization allows you to achieve the intended goal even in the most demanding projects. ECU Master EMU PRO comes in two versions. EMU PRO 16 designed for a large number of inputs/outputs and EMU PRO 8 designed for smaller engines up to 8 cylinders
PRODUCT FEATURES:
- Software designed to give the user unprecedented configuration flexibility.
- The user has the ability to adjust the size of all tables in the software and the channels used on each axis of the table.
- Flexible system with custom functions, numbers, CAN inputs, well known for Power Management Unit (PMU) and Advanced Display Unit (ADU).
- PWM solenoid valve control.
- Outputs and inputs to support the most demanding applications.
- Supported engine type - Four-stroke, two-stroke, rotor; up to 12 cylinders.
- Oxygen sensor - 2 x internal LSU 4.9 controller, support for up to 4 sensors.
- 2 x DBW full support with automatic calibration.
- User defined board sizes up to 32×32.
- 2 x CAN 2.0A/B, 1 x LIN bus.
- 2x knock sensors.
- Login to external USB memory.
- Data logging up to 500 Hz.
- 8 EGT inputs (or precision analog inputs).
- A total of 46 outputs and 30 inputs.
- Custom user functions, numbers, tables and outputs.
- IP 65 waterproof housing, custom made CNC machined aluminum.
- On-line parameter analysis displayed in log graph.
