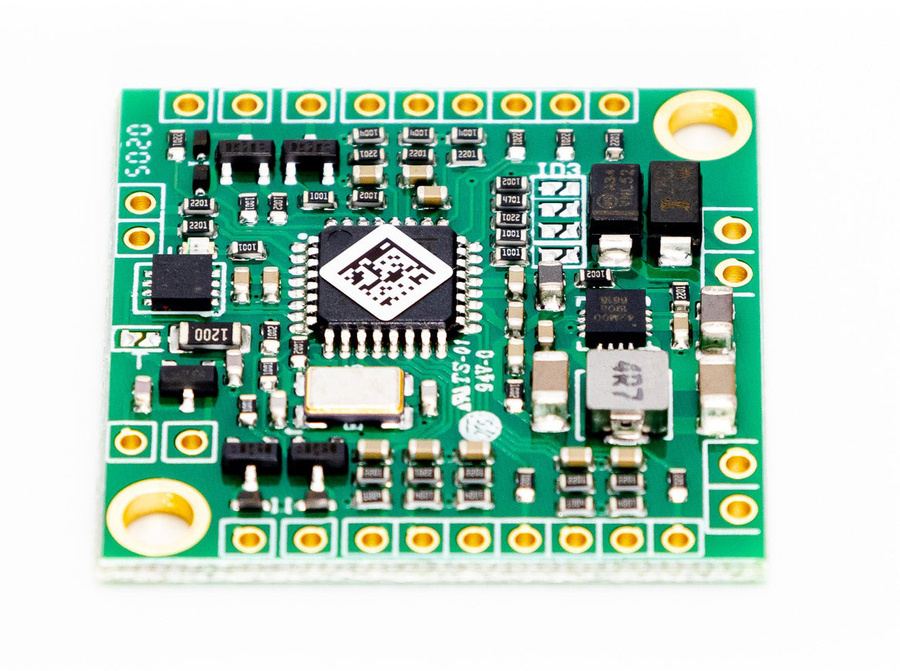

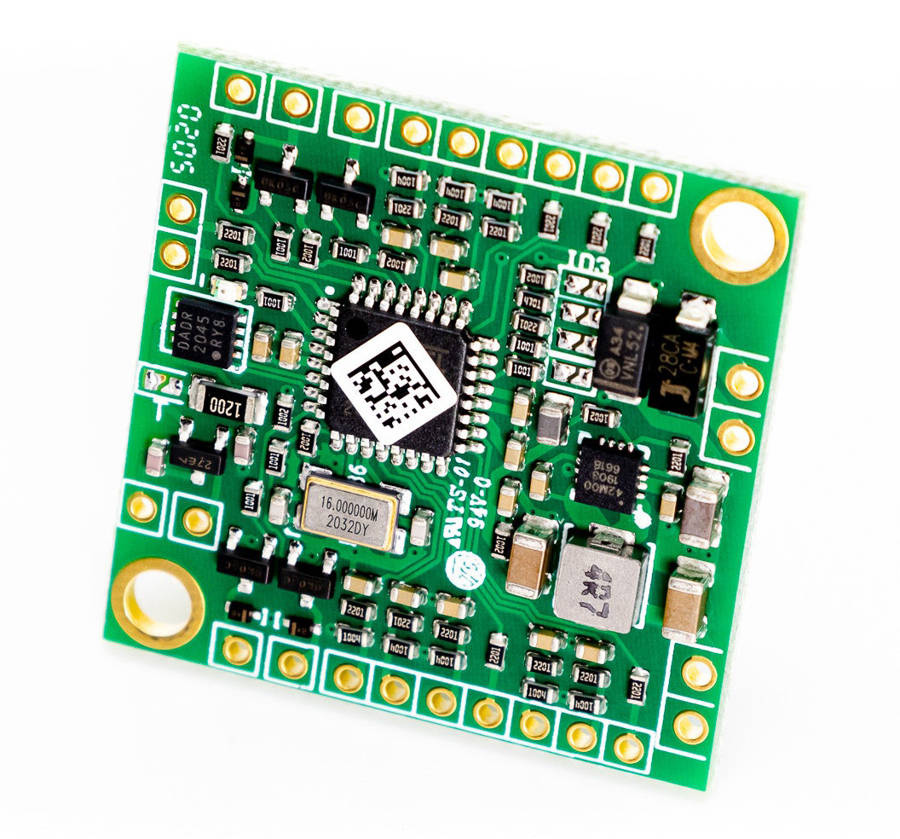

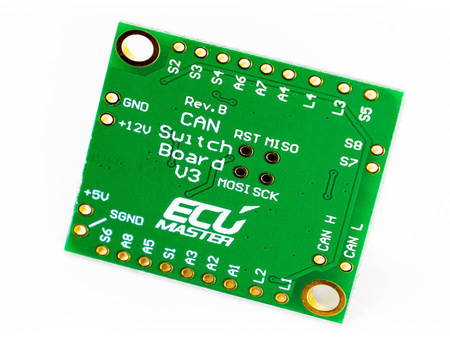

ECUMaster Can Switch Board
ECUMaster Can Switch Board
Product Description
The ECUMaster Can Switch Board is a small device that allows you to send up to 8 analog signals and 8 switch states via the CAN bus. It has built-in two LED lights that can be used, for example, when connected to the Master ECU displays as error indicators.
The main task of the ECU Master Can Switch Board is the ability to create custom applications that allow, for example, to add rotary switches or indicators to your dashboard or steering wheel. It also allows you to use custom OEM keyboards and steering wheels.
SPECIFICATION:
Operating temperature range
- -40 to 125C
Power
- 6-22V
Analog inputs
- 8 pieces 0-5V
CAN bus
- CAN 2.0 A/B
Bus speeds
- 125
- 250
- 500
- 1000
