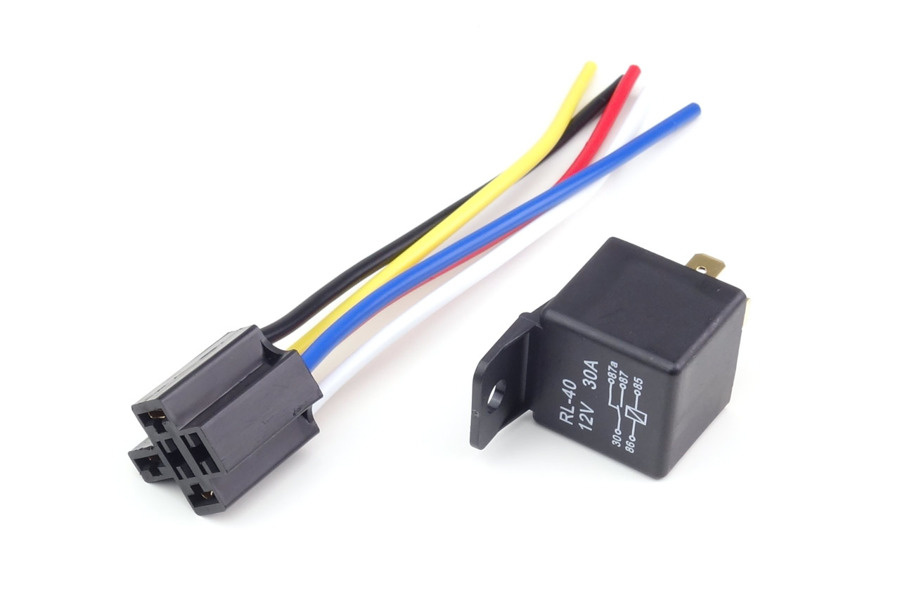

Universal relay 12V 30A IRP

NO/NC relay with a wide range of applications:

• Automatic activation/deactivation of dipped beam, daytime running lights, etc.
• Ignition lock (in cooperation with central locking)
• car alarm
• Gas installations

Technical Specifications:

Relay:

• Maximum working current: 30A
• Voltage: 12V
• Number of PINs: 5

The socket has 5 pins with wires - each in a different color

• Cable length 10 cm
• The thickness of the current wires is 2.5 mm
• The thickness of the wires supplying the relay coil is 0.5 mm

Connection instructions:

PIN No. 30 should be connected to the plus (+) of the ignition

PIN No. 85 should be connected to ground (-)

PIN No. 86 should be connected to the plus (+) of parking lots

PIN No. 87 is not connected - it is best to insulate

PIN #87a must be connected to the plus (+) of the daytime running lights
