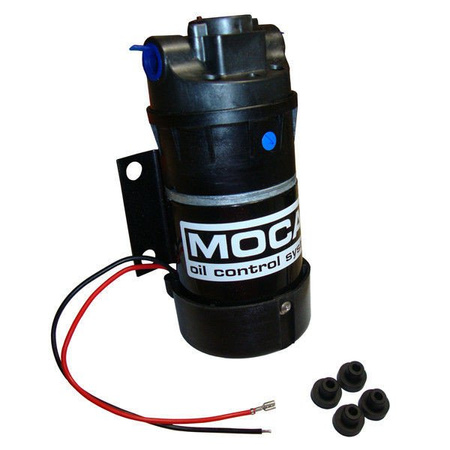

Oil pump Mocal 24V

Electric, diaphragm, oil pump Mocal TCP3

Ideally suited for the cooling systems of the gearbox, differentials, turbocharger oil systems.
The pump is self-priming and can be placed anywhere.
The direction of flow is marked on the ports.

Specification:
- Power supply: 24V , 8A
- Inlet and outlet threads: 3/8 NPT.
- The flow rate is 7.5 l / min.
- Maximum pressure: 3.5bar (50psi)
- Optimum working temperature 70 ° C-130 ° C
- Light body made of nylon.

Dimensions:
- Diameter: 102mm
- Height: 200mm

A prefilter must be used upstream of the pump! Any damage caused by contamination will not be covered by the warranty.
