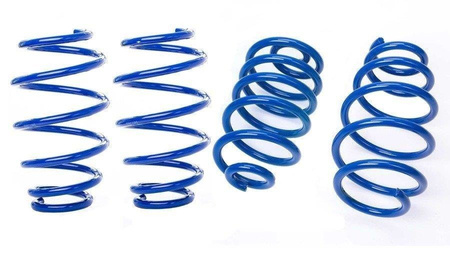

Lowering Springs AP Volkswagen Golf IV (1J) Kombi
- Years: 04/99-
Lowering Springs AP Volkswagen Golf IV (1J) Kombi
Engine: 1.4, 1.6
Power (KW): 55-81
Years: 04/99-
Maximum axle load (kg): front: -910 ; rear: -1010
Lowering: (mm): front: 50 ; rear: 30
Part number: FS80-051
Notes:
The lowering range has to be checked according to the requirements in the TÜV-certificate. The vehicles are factory-equipped with different spring rubber seats. The maximum lowering can by achieved by using 1-point spring rubber seats. The lowering range can be varied accordingly by using 3-point or 5-point rubbers (the rubbers are only available in OE). Please see manufacturer specifications for prices.
For a lowering from 45 mm and more, a modification by using a swaybar conversion set Art. ZB50-008, Price 95,- € might be necessary to improve wheel clearance between stabilizer and drive shaft.
