Zestaw sprzęgła Xtreme Motorsport Nissan Skyline R32 / R33 / R34 / Stagea WC34 - KNI20526-2E
Zestaw sprzęgła Xtreme Motorsport Nissan Skyline R32 / R33 / R34 / Stagea WC34 - KNI20526-2E
Opis produktu
Zestaw sprzęgła Xtreme Motorsport Nissan Skyline R32 / R33 / R34 / Stagea WC34 - KNI20526-2E
Numer katalogowy: KNI20526-2E
Pasuje do:
- NISSAN SKYLINE (R34) 2.5 1998.06-2006.01 RB25DET 2498 Petrol 187 kW 254 BHP
- NISSAN SKYLINE (R34) 2.5 4x4 (ENR34) 1998.06-2000.07 RB25DEH 2498 Petrol 147 kW 200 BHP
- NISSAN SKYLINE coupe (R32) 2.6 Twin Turbo 4x4 1989.04-1993.06 RB26DETT 2569 Petrol 206 kW 280 BHP
- NISSAN SKYLINE coupe (R33) 2.6 Twin Turbo 4x4 1994.07-1999.09 RB26DETT 2569 Petrol 206 kW 280 BHP
- NISSAN SKYLINE coupe (R34) 2.5 4x4 1998.06-2000.07 RB25DEH 2498 Petrol 147 kW 200 BHP
- NISSAN SKYLINE coupe (R34) 2.5 Turbo 1998.05-2006.01 RB25DET 2498 Petrol 206 kW 280 BHP
- NISSAN STAGEA (WC34) 2.5 1996.09-2001.10 RB25DE 2498 Petrol 140 kW 190 BHP
- NISSAN STAGEA (WC34) 2.5 AWD 1996.09-2001.10 RB25DE 2498 Petrol 140 kW 190 BHP
- NISSAN STAGEA (WC34) 2.5 Turbo AWD 1996.09-2001.10 RB25DET 2498 Petrol 173 kW 235 BHP
- NISSAN STAGEA (WC34) 2.6 Twin Turbo 1996.09-2001.10 RB26DETT 2569 Petrol 206 kW 280 BHP
Specyfikacja:
Średnica tarczy sprzęgła (mm): 200
Średnica wieloklinu sprzęgła (mm): 25.4
Moment obrotowy (Nm): 1200
Skok koła zamachowego: +2.2mm
Konstrukcja: Twin Plate
Biuletyn techniczny:
Siła docisku:
Rekomendowane do: Motorsport
Xtreme Motorsport 200mm twin plate

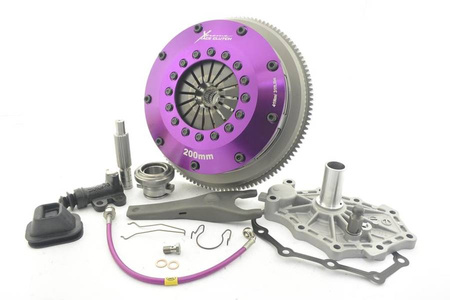

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
