Zestaw sprzęgła Xtreme Motorsport Ford Mustang V / VI - KFD23655-2E
Zestaw sprzęgła Xtreme Motorsport Ford Mustang V / VI - KFD23655-2E
Opis produktu
Zestaw sprzęgła Xtreme Motorsport Ford Mustang V / VI - KFD23655-2E
Numer katalogowy: KFD23655-2E
Pasuje do:
- FORD MUSTANG 6th gen 5.0 GT 2015-2018 MF8F 4951 Petrol 306 kW 416 BHP
Specyfikacja:
Średnica tarczy sprzęgła (mm): 230
Średnica wieloklinu sprzęgła (mm): 26
Moment obrotowy (Nm): 1830
Skok koła zamachowego: +3.8mm
Konstrukcja: Twin Plate
Biuletyn techniczny:
Siła docisku:
Rekomendowane do: Motorsport

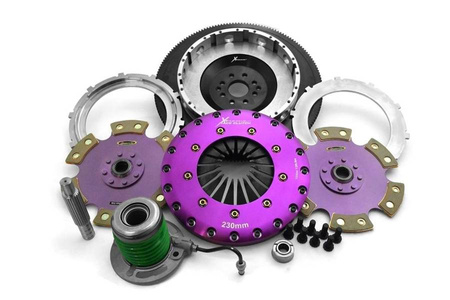

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
