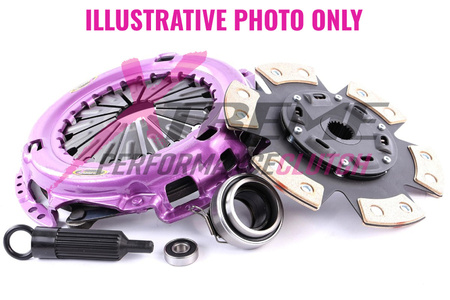

Zestaw sprzęgła Xtreme Performance Mazda 323 C IV - KFD23012-1R

Zestaw sprzęgła Xtreme Performance Mazda 323 C IV - KFD23012-1R

Numer katalogowy: KFD23012-1R

Pasuje do:

- MAZDA 323 C IV (BG) 1.8 16V 4WD (BG8S) 1989.08-1994.05 BP Turbo 1840 Petrol 132 kW 179 BHP
- MAZDA 323 C IV (BG) 1.8 16V Turbo 4WD (BG8S) 1990.09-1992.12 BP Turbo 1840 Petrol 120 kW 163 BHP
- MAZDA 323 C IV (BG) 1.8 16V Turbo 4WD (BG8S) 1993.01-1994.07 BP Turbo 1840 Petrol 136 kW 185 BHP
- MAZDA 323 C IV (BG) 1.8 GT-R 4WD (BG8S) 1992.01-1994.05 BP Turbo 1840 Petrol 154 kW 209 BHP

Specyfikacja:
Średnica tarczy sprzęgła (mm): 230

Ilość zębów: 22

Średnica wieloklinu sprzęgła (mm): 24.5

Moment obrotowy (Nm): 730

Skok koła zamachowego: -6.0mm/.236""

Konstrukcja: Single Plate

Biuletyn techniczny:

Siła docisku: 1100Kg (90% inc.)

Rekomendowane do: Race Vehicles - Stage 2R

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 730Nm
• Clamp load 1100Kg 90% Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
