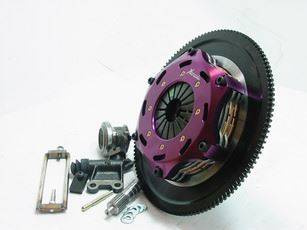

Zestaw sprzęgła Xtreme Motorsport Subaru Impreza / WRX - KSU18521-2E
Zestaw sprzęgła Xtreme Motorsport Subaru Impreza / WRX - KSU18521-2E
Opis produktu
Zestaw sprzęgła Xtreme Motorsport Subaru Impreza / WRX - KSU18521-2E
Numer katalogowy: KSU18521-2E
Pasuje do:
- SUBARU Impreza 2.0 AWD (GDB) 2005.10-2007.03 EJ207 1994 Petrol 206 kW 280 BHP
- SUBARU Impreza 2.0 Turbo AWD (GGA) 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP
- SUBARU Impreza 2.0 Turbo GT AWD (GC8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP
- SUBARU Impreza 2.0 Turbo GT AWD (GF8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP
- SUBARU Impreza 2.0 WRX AWD (GGA) 2001.09-2005.12 EJ205 1994 Petrol 169 kW 230 BHP
- SUBARU Impreza 2.0 WRX STi AWD 2004.02-2005.07 EJ207 1994 Petrol 235 kW 320 BHP
- SUBARU Impreza 2.0 WRX STi AWD (GDB) 2001.11-2005.07 EJ207 1994 Petrol 195 kW 265 BHP
- SUBARU Impreza 2.0 WRX STi AWD (GGB) 2000.10-2002.10 EJ207 1994 Petrol 206 kW 280 BHP
- SUBARU Impreza 2.0 WRX Turbo AWD (GDA) 6 speed 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP
- SUBARU Impreza 2.0 WRX Turbo AWD (GGA) 2002.12-2006.09 EJ205 1994 Petrol 165 kW 225 BHP
- SUBARU Impreza 2.5 AWD 2005.10-2007.03 EJ257 2457 Petrol 221 kW 300 BHP
- SUBARU Impreza 2.5 AWD (GDF) 2005.10-2007.03 EJ257 2457 Petrol 221 kW 300 BHP
- SUBARU Impreza 2.5 i WRX STI AWD 2005.09-2007.12 EJ257 2457 Petrol 195 kW 265 BHP
- SUBARU Impreza 2.5 STI CS400 AWD (GRF) 2010.04-2013.08 EJ257 2457 Petrol 294 kW 400 BHP
- SUBARU Impreza 2.5 WRX STI 330S AWD 2009.05-2010.12 EJ257 2457 Petrol 243 kW 330 BHP
- SUBARU Impreza 2.5 WRX STi AWD (GDF) 2005.09-2007.12 EJ257 2457 Petrol 206 kW 280 BHP
- SUBARU Impreza 2.5 WRX STI AWD (GRF) 2008.01-2013.08 EJ257 2457 Petrol 221 kW 301 BHP
- SUBARU Impreza 2.5 WRX STI AWD (GVF) 2010-2014 EJ255 2457 Petrol 221 kW 301 BHP
- SUBARU WRX sedan 2.0 AWD (GK6. GK8) 2013.09-2018 FA20F, FA20E 1998 Petrol 197 kW 268 BHP
- SUBARU WRX sedan 2.0 AWD (GK6. GK8) 2019- FA20F, FA20E 1998 Petrol 197 kW 268 BHP
- SUBARU WRX sedan STi 2.5 AWD 2014.06- EJ257 2457 Petrol 221 kW 301 BHP
Specyfikacja:
Średnica tarczy sprzęgła (mm): 184
Średnica wieloklinu sprzęgła (mm): 25.2
Moment obrotowy (Nm): 1220
Skok koła zamachowego: +2.5mm
Konstrukcja: Twin Plate
Biuletyn techniczny:
Siła docisku: 900Kg
Rekomendowane do: Motorsport
Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
