Zestaw sprzęgła Xtreme Motorsport BMW E30 / E36 / E46 / Z3 E36 - KBM20530-2E
Zestaw sprzęgła Xtreme Motorsport BMW E30 / E36 / E46 / Z3 E36 - KBM20530-2E
Opis produktu
Zestaw sprzęgła Xtreme Motorsport BMW E30 / E36 / E46 / Z3 E36 - KBM20530-2E
Numer katalogowy: KBM20530-2E
Pasuje do:
- BMW 3-Series 318 is E36 1993-1995 1796cc | 103KW | 140HP | M42 B18 (184S1)
- BMW 3-Series 318 is E36 1992-1995 1796cc | 103KW | 140HP | M42 B18 (184S1)
- BMW 3-Series 318 is E36 1995-1999 1895cc | 103KW | 140HP | M44 B19 (194S1)
- BMW 3-Series 318 is E36 1996-1998 1895cc | 103KW | 140HP | M44 B19 (194S1)
- BMW 3-Series 318 ti E36 1994-1995 1796cc | 103KW | 140HP | M42 B18 (184S1)
- BMW 3-Series 318 ti E36 1996-1999 1895cc | 103KW | 140HP | M44 B19 (194S1)
- BMW 3-Series 320 Ci E46 1999-2001 1990cc | 110KW | 150HP | M52 B20 (206S4)
- BMW 3-Series 320 i E46 1998-2000 1990cc | 110KW | 150HP | M52 B20 (206S4)
- BMW 3-Series 320 i E46 1999-2000 1990cc | 110KW | 150HP | M52 B20 (206S4)
- BMW 3-Series 323 Ci E46 1999-2000 2494cc | 125KW | 170HP | M52 B25 (256S4)
- BMW 3-Series 323 i E46 1998-2000 2494cc | 125KW | 170HP | M52 B25 (256S4)
- BMW 3-Series 323 ti E36 1997-2000 2494cc | 125KW | 170HP | M52 B25 (256S3)
- BMW 3-Series 325 i E36 1990-1995 2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2)
- BMW 3-Series 325 i E36 1991-1995 2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2)
- BMW 3-Series 325 i E36 1993-1995 2494cc | 141KW | 192HP | M50 B25 (256S2)
- BMW 3-Series 328 Ci E46 1998-2000 2793cc | 142KW | 193HP | M52 B28 (286S2)
- BMW 3-Series 328 i E36 1995-1999 2793cc | 142KW | 193HP | M52 B28 (286S1)
- BMW 3-Series 328 i E36 1995-1998 2793cc | 142KW | 193HP | M52 B28 (286S1)
- BMW 3-Series 328 i E46 1998-2000 2793cc | 142KW | 193HP | M52 B28 (286S2)
- BMW 3-Series 328 i E46 1999-2000 2793cc | 142KW | 193HP | M52 B28 (286S2)
- BMW 3-Series M3 3.0 E36 1992-1995 2990cc | 210KW | 286HP | S50 B30 (306S1)
- BMW 3-Series M3 3.0 E36 1994-1995 2990cc | 210KW | 286HP | S50 B30 (306S1)
- BMW 3-Series M3 3.0 E36 1993-1995 2990cc | 217KW | 295HP | S50 B30 (306S1)
- BMW 3-Series M3 3.2 E36 1995-1998 3201cc | 236KW | 321HP | S50 B32 (326S1)
- BMW 3-Series M3 3.2 E36 1996-1999 3201cc | 236KW | 321HP | S50 B32 (326S1)
- BMW Z3 1.9 i E36 1995-1999 1895cc | 103KW | 140HP | M44 B19 (194S1)
- BMW Z3 M E36 1998-2001 3201cc | 236KW | 321HP | S50 B32 (326S1);S50 B32 (326S3)
- BMW Z3 M 3.2 E36 1997-2000 3201cc | 236KW | 321HP | S50 B32 (326S1)
Specyfikacja:
Średnica tarczy sprzęgła (mm): 200
Średnica wieloklinu sprzęgła (mm): 29
Moment obrotowy (Nm): 1200
Skok koła zamachowego: +2.2mm
Konstrukcja: Twin Plate
Biuletyn techniczny:
Siła docisku: 1100Kg
Rekomendowane do: Motorsport
Xtreme Motorsport 200mm twin plate

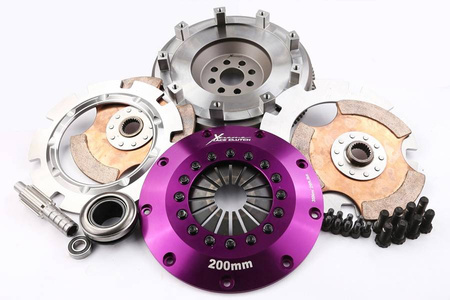

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
